It can easily be used to make essential oils from plants such as Lavender , Rosemary , Pine and Fir Needles , Peppermint , Basil , Eucalyptus Leaves etc.
This distiller is available in either propane or electric, depending on your needs.
|
| Model Number: | 50-4000L |
| Price: | CN¥233,380.42-258,669.32/sets |
1) Essential oil distiller as a common product in producing Chinese tradition medicine, is often used to extract effective ingredients from animals and plants and perfume oil in such fields as pharmaceutical manufacturing, biology, food, chemical industry etc.
2) Essential oil distiller is suitable for containing high grease composition of plant leaves, flowers, grass and animal material in conventional oil,essential oil, fragrant oil composition of water distillation extraction process.

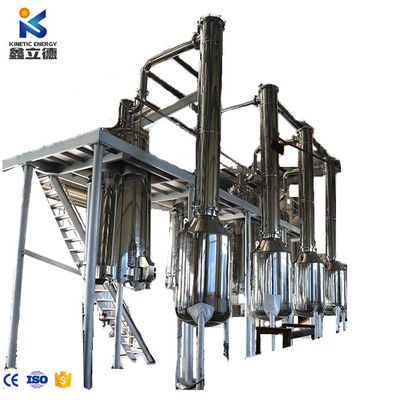

Product Structure:
The device consists of inverted vertebral distillation kettle, demister, condensing tower, oil-water separator, double filter, supercharger, material conveyor belt and essential oil, pure dew collection tank, pure dew storage tank, food grade pump and other related pipelines composition. Equipment internal surface polishing Ra≤0.6μm,Outer surface matte treatment Ra≤0.8μm,To ensure that no health dead ends, in line with GMP requirements.
Essential oil distillation extracting equipment Main parameters:
Distillation kettle | Effective volume: 3000L, using high-pressure steam through heating. Inside: working pressure: normal pressure;design temperature:120℃,work temperature≤100℃.Working medium:water; Upper oval headδ=5mm/S30408,Cylinder δ=5mm/S30408. Discharge slag door:DN1200, Three cylinder rotary slag gate, Single cylinder to open the door, two cylinder locking, a slag door with self-locking cylinder. |
Demister | Size Φ300×750,δ=3mm/S30408,Demister inside has baffle, The top of the demister is set to the quick opening hole. Demister to facilitate cleaning.Meet the GMP requirements. |
Condenser | Vertical condenser. Heat transfer area is greater than10m2 . Pipeline:designed pressure: normal pressure;working pressure: normal pressure;design temperature:100℃, work temperature≤90℃. Working medium:Secondary steam. Length:Φ25×2,Material: S30408 |
Production Character:
1By steam distillation to reach the extraction of essential oils.easy operation. One people can operate this machine easily .
2 it is heated by steam .
3 Save energy: the steam from steam generator which directly distill the raw material, and the steam will be cooled by condenser, and seperate the water from oil from separator, the water can flow back to steam boiler again, so the purity water can be circulation.
4 All the machine have not dead corner, so it is good to clean and it is according GMP standard.
5 All surface of the machine is mirror polished, so it is looks very beautiful.
This versatile distiller can be used for water distillation or water steam distillation.
It can be used for either water distillation (where the plant material is submersed in water) or as a water/steam distiller (where the column keeps plant material from direct contact with water).
Name: Steam distillation
Brand: KINETIC
Original: China
Power:380V/50HZ/3P, 220V/60HZ/3P

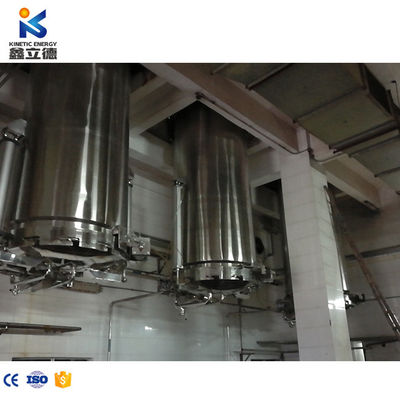

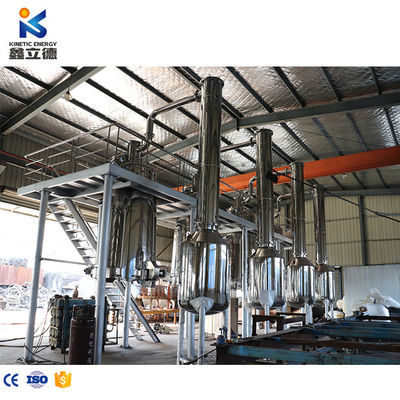

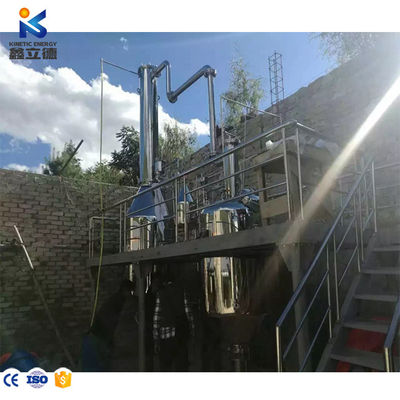

Install pictures
10L 100L 300L 500L
Pre-sales service
1.Quick response
2.Detailed quotation
3.Professional production and transportation solution
After-sales service
1.One year warranty
2.we will provide one engineer to assemble and train workers.
3.7*24 hours technical support by mail/whatsapp/skype/wechat/ mobile phone.
Wuhan Kinetic is a Professional and modern grain and oil machinery engineering equipment manufacturer integrating research, manufacturing and installation. We have obtained rich experience and practice in palm fruit oil machine, vegetable oil pretreatment, prepress,extraction, sophisticated technology and equipment designs etc, owing wide international market in more than 130 countries and regions.
With more than 30 years of experience on oil making machine, we provide a comprehensive range of products
We are proud to guarantee that, with our strong technical background and communication capability, our sales/support engineers are able to answer your most complicated technical questions over the phone in English. That would save a lot of time for communication.
The following pictures show our factory and customers in our workshop.
Q1: What is the Warranty for the machines?
A1: 1 year for free.
Q2: What is the Material?
A2: Stainless steel.
Q3: When can I get the price?
A3: Within 24 hours, if urgent, please directly call us.
Q4: Whether the machine price can be more discount?
A4: In general, our MOQ is 1set with very reasonable price, but if large order, we also can apply to our Manager to appropriately give you a little discount.
Q5: How to ask quotation?
A5: Please note us what type of raw materials , and how many kinds of raw materials you want to treat per batch, then we will send you quotation as soon as we can.
Q6: Can we ask the oil plant for different types of oil?
A6: Yes, but we recommend no more than 3 different types.
Q7: Essential oil plants require how large of a workspace?
A7: The land area typically depends on the capacity of the plant. We can suggest an appropriate space to prepare after given specifications, or, can design the oil plant in-house specifically to the amount of workspace available.
Q8: How long will it take to receive my products?
A8: As a general rule, it will take one Month for us to produce.
Q9: Do you offer oversea installation?
A9: We'll send professional installation engineer to help you install the equipment, as well as training your workers freely.
|
|
