| Price: | CN¥11,553.42/sets |
essential oil distillation equipment can be a fabulous gift for beginners who interests in the art of distilling essential oil and hydrosol in small batches from plants in the garden .
(1)By steam-distillation to reach the extraction of essential oils.
(2)Easy operation. One people can operate this machine easily .
(3)High efficiency. Using indirect heating of heat- transfer oil, it can quickly reach 100C high temperature under the conditions of cleanness, safety and atmospheric pressure.
(4)Compact structure.It covers only about 1.5 square meter.
Equipment Name | Main technical parameter | ||||
10L Gourd Shape Essential Oil Distillation Equipment | 1. Structure : The equipment is made of distillation kettle, demister, condenser, cooler, oil and water separator, re-distillation device, coagulate fragrance device, 220V 2.2KW electric ceramic stove and related pipes. Distillation equipments are all made of SUS304 stainless steel. The inner surface of the equipment is polished with Ra ≤ 0.6μm and the mirror surface treatment with Ra ≤ 0.8μm to ensure that there is no dead corner and meet the GMP requirements. | ||||
2. Distillation kettle: effective volume: 10L, direct heating with tank bottom. Kettle inside: Design pressure: 0.09 Mpa; Working pressure: atmospheric pressure; Design temperature: 120 ℃; Working temperature:≤ 100 ℃; Working medium: water; Barrel = 1.5mm/SUS304; Upper oval head= 1.5mm/SUS304; Pipeline hole: thermometer connector, reflux inlet, liquid outlet, related pipe joints etc. | |||||
3. Condenser: vertical condenser, heat exchange area> 0.03 square meter. Tube pass: Design pressure: atmospheric pressure; Working pressure: atmospheric pressure; Design temperature: 100 ℃; Working temperature ≤ 100 ℃; Working medium: secondary steam. Tube pass: Φ 19 x 1.5; Material :SUS304; Shell pass: Design pressure: 0.3 Mpa; Working pressure:atmospheric pressure; Working temperature: 15 ~ 40℃. Working medium: cooling water. | |||||
4. Oil and water separator: tank material: δ1.5mm/SUS304, top glass; Tank volume: 3L; | |||||
5. Electric ceramic stove: working voltage 220V/50HZ triphase. Maximum heating power: 2.2kw, 22-speed adjustable. | |||||
6. Accessories: 1pcs electric ceramic stove (light wave furnace), 1pcs thermometer, 1pcs silicone tube and tube clamps. | |||||
From flowers and plants to natural essential oil
Model | LSZL-0.01 |
Distillation kettle volume( L) | 10 |
working voltage(V) | 220V/50HZ triphase |
Maximum heating power (kw) | 2.2 |
Packing Size(mm) | 1055*805*345 |
Packing weight(kg) | 27.1 |

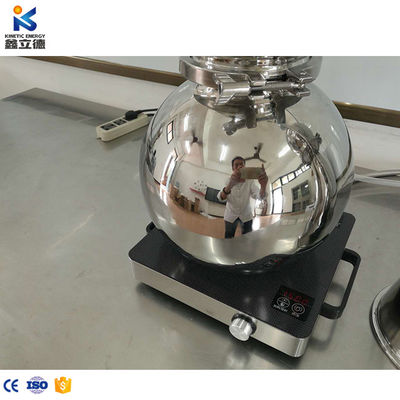

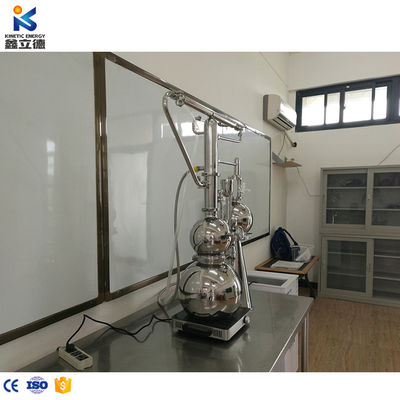

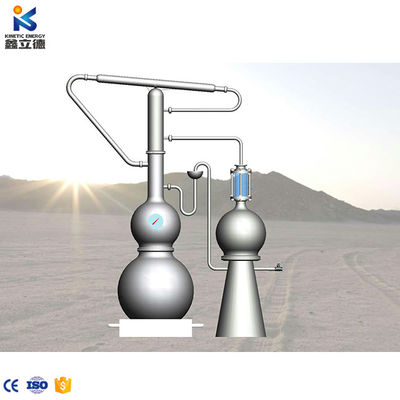

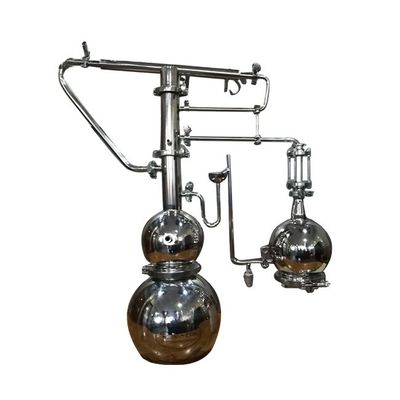

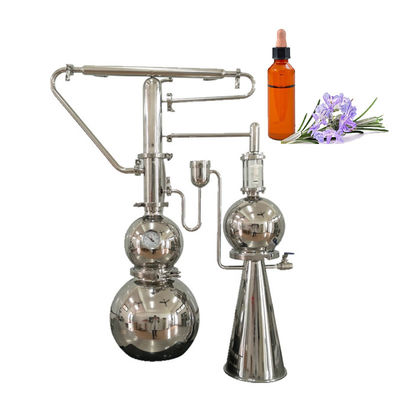

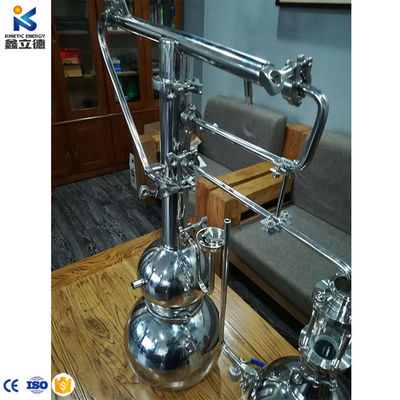

Different pictures show of our 10L gourd shape essential oil distillation equipment:
Description | Raw material | Description | Raw material |
Gaultheria procumbens essential oil distiller | Gaultheria procumbens leaf | Cinnamomum cassia essential oil distiller | Cinnamomum cassia Cinnamon bark |
Achillea millefolium essential oil distiller | Achillea millefolium Flowers and upper branches | Santalum album essential oil distiller | Santalum album Wood core and root core |
Cymbopogon nardus essential oil distiller | Cymbopogon nardus Leaf blade | Matricaria chamomilla essential oil distiller | Matricaria chamomilla flowers |
Pimenta dioica essential oil distille | Pimenta dioica seeds | Anthemis nobilis essential oil distiller | Anthemis nobilis flowers |
Angelica archengelica essential oil distiller | Angelica archengelica root | Cinnamomum zeylanicum essential oil distiller | Cinnamomum zeylanicum Wood core and root core |
Angelica archengelica essential oil distiller | Angelica archengelica seeds | Salvia sclarea essential oil distiller | Salvia sclarea Leaf and upper branch |
Pimpinella anisum essential oil distiller | Pimpinella anisum seeds | Eugenia caryophylatta essential oil distiller | Eugenia caryophylatta bud |
Arnica montana essential oil distiller | Arnica montana root | Eugenia caryophylatta essential oil distiller | Eugenia caryophylatta Leaf |
Our service:
Pre-sales service
1.Quick response
2.Detailed quotation
3.Professional production and transportation solution
After-sales service
1.One year warranty
2.we will provide one engineer to assemble and train workers.
3.7*24 hours technical support by mail/whatsapp/skype/wechat/ mobile phone.
Q1: What is the Warranty for the machines?
A1: 1 year for free.
Q2: What is the Material?
A2: Stainless steel.
Q3: When can I get the price?
A3: Within 24 hours, if urgent, please directly call us.
Q4: Whether the machine price can be more discount?
A4: In general, our MOQ is 1set with very reasonable price, but if large order, we also can apply to our Manager to appropriately give you a little discount.
Q5: How to ask quotation?
A5: Please note us what type of raw materials , and how many kinds of raw materials you want to treat per batch, then we will send you quotation as soon as we can.
Q6: Can we ask the oil plant for different types of oil?
A6: Yes, but we recommend no more than 3 different types.
Q7: Essential oil plants require how large of a workspace?
A7: The land area typically depends on the capacity of the plant. We can suggest an appropriate space to prepare after given specifications, or, can design the oil plant in-house specifically to the amount of workspace available.
Q8: How long will it take to receive my products?
A8: As a general rule, it will take one Month for us to produce.
Q9: Do you offer oversea installation?
A9: We'll send professional installation engineer to help you install the equipment, as well as training your workers freely.
|
|
