Brand: XLD
Original: China
|
| Price: | CN¥85,259.72-106,935.92/units |

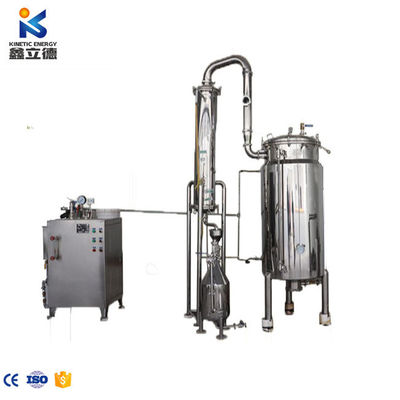

The device consists of inverted vertebral distillation kettle, demister, condensing tower, oil-water separator, double filter, supercharger, material conveyor belt and essential oil, pure dew collection tank, pure dew storage tank, food grade pump and other related pipelines composition. Equipment internal surface polishing Ra≤0.6μm，Outer surface matte treatment Ra≤0.8μm，To ensure that no health dead ends, in line with GMP requirements.
1) This distillation pot is designed for steaming and boiling essential oil and floral water.
2) The patent pot is entirely made of stainless steel with no rubber or plaster part.
3) No chemical substaince is used in the process of making essential oil and hydrosol.
4) Making essential oil and hydrosol in high efficiency.
5) It's convenient and easy to carry.
Main equipment introductions
Distillation kettle | Max volume 150L, effective volume 100L, material basket volume 80L, use jacket heating and steam direct heating, heat exchange area more 1㎡. Kettle inside: design pressure: 0.09Mpa, working pressure: normal pressure, design temperature: 120℃, work temperature≤100℃, Working medium: water. Jacket layer inside: Material Aluminium silicate, thickness 50mm. Slag discharge door: Manual slag door, DN100. Insulation layer: Material Aluminium silicate, thickness 50mm. | ||||
Demister | Size Φ102×500, clamping band quick connect installation, demister to facilitate cleaning.Meet the GMP requirements. | ||||
Condensing tower | Vertical condenser. Heat transfer area is greater than 2㎡. Pipeline: designed pressure: normal pressure, working pressure: normal Pressure: design temperature: 100℃, work temperature≤100℃. Working medium: Secondary steam. Length: Φ25×2. Shell: designed pressure: 0.3Mpa, working pressure: normal pressure. design temperature: 80℃, work temperature: 15～30℃. Working medium: cooling water. | ||||
Electric steam boiler | 380v, 50Hz, adjustable 6-18kw, steam Temperature: 120℃/100℃, steam production: 26kg/h. Working pressure: 0.4 ~ 0.6MPa, cable cross-sectional area: 10㎡. Water pressure: 0.4MPa. | ||||
Brand: XLD
Original: China
Best seller design 100l vegetable essential oil steam distillation kit
Brand: XLD
Original: China
Brand: XLD
Original: China
Brand: XLD
Original: China
Wuhan Kinetic is a Professional and modern grain and oil machinery engineering equipment manufacturer integrating research, manufacturing and installation. We have obtained rich experience and practice in palm fruit oil machine, vegetable oil pretreatment, prepress,extraction, sophisticated technology and equipment designs etc, owing wide international market in more than 130 countries and regions.
With more than 30 years of experience on oil making machine, we provide a comprehensive range of products
We are proud to guarantee that, with our strong technical background and communication capability, our sales/support engineers are able to answer your most complicated technical questions over the phone in English. That would save a lot of time for communication.

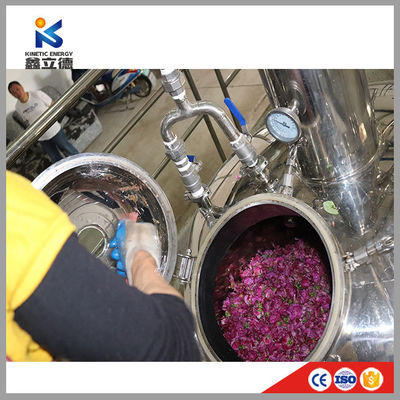

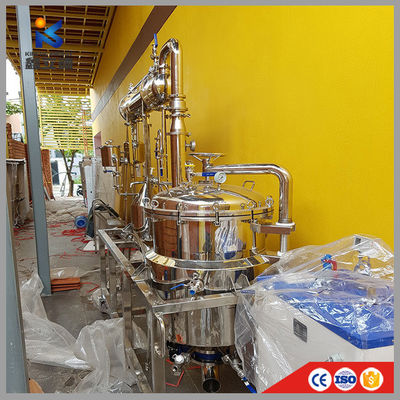

The following pictures show our factory and customers in our workshop.
Our service:
Pre-sales service
1.Quick response
2.Detailed quotation
3.Professional production and transportation solution
After-sales service
1.One year warranty
2.we will provide one engineer to assemble and train workers.
3.7*24 hours technical support by mail/whatsapp/skype/wechat/ mobile phone.
Q1: What is the Warranty for the machines?
A1: 1 year for free.
Q2: What is the Material?
A2: Stainless steel.
Q3: When can I get the price?
A3: Within 24 hours, if urgent, please directly call us.
Q4: Whether the machine price can be more discount?
A4: In general, our MOQ is 1set with very reasonable price, but if large order, we also can apply to our Manager to appropriately give you a little discount.
Q5: How to ask quotation?
A5: Please note us what type of raw materials , and how many kinds of raw materials you want to treat per batch, then we will send you quotation as soon as we can.
Q6: Can we ask the oil plant for different types of oil?
A6: Yes, but we recommend no more than 3 different types.
Q7: Essential oil plants require how large of a workspace?
A7: The land area typically depends on the capacity of the plant. We can suggest an appropriate space to prepare after given specifications, or, can design the oil plant in-house specifically to the amount of workspace available.
Q8: How long will it take to receive my products?
A8: As a general rule, it will take one Month for us to produce.
Q9: Do you offer oversea installation?
A9: We'll send professional installation engineer to help you install the equipment, as well as training your workers freely.
