| Price: | CN¥128,612.12-136,198.79/sets |
laurel leaf vacuum steam distillation Garlic essential oils steam distilled nutmeg essential oil
Production description:

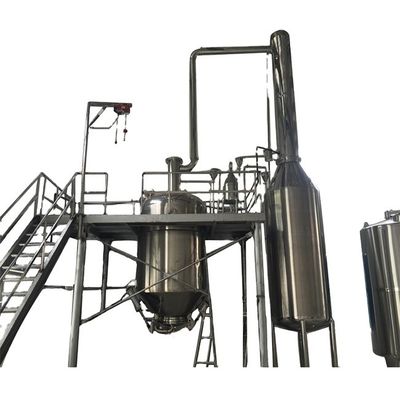

The essential oil machine produced in our factory is designed according to the essential oil extraction method: steam distillation.
This is the most commonly used method for extracting essential oils. 95% of the essential oils are extracted by distillation. This method is to put the plant parts (wood chips, flowers, leaves, etc.) containing aromatic substances into a large container (distiller). At the bottom of the container, the steam heated by low pressure is then poured into the container. When the hot steam is filled in the container, it absorbs the aromatic essential oil in the plant and helps with it. The water vapor passes through the condenser tube above, and is finally introduced into the condenser. After the steam cooling is converted into water, oil and water can be separated and the essential oil can be collected.
| Extraction tank volume(L) | Condensing system m² | Diameter of feeding mouth(mm) | Oil-water separator(L) | Fermentation tank(L) | Vaporization (kg/h)
| Equipment area (mm) | working temperature |
| 500 | 2.5 | 400 | 30 | 400 | 150 | 45000*2300*400 | 143℃ |
Production profit:
The stainless steel oil machine manufactured by our company is widely used in agricultural tourism, eco agriculture park and botanical garden. Production of essential oils can be used in hydrosol and aromatherapy products stores, hot springs clubs, and food and drugs all contain essential oils, both at home and abroad with a huge sales market.
Product advantage:
1. This equipment is made of SUS304 stainless steel with special frame.
2. It has three layers SS Plate distillation system which can extract the oil efficiently.
3. This machine equips Digital control system
4. Easy operation,one people can operate this machine easily.
Workshop layout:
(Ps: if necessary, when installing, we will send professional installation workers to install the equipment for you.)
Other products:

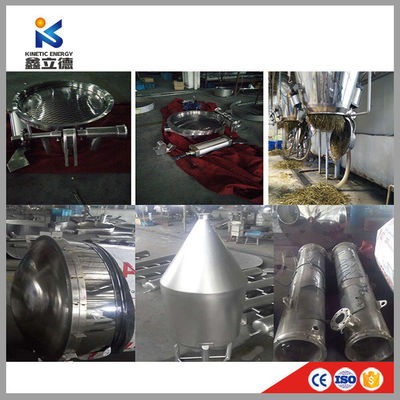

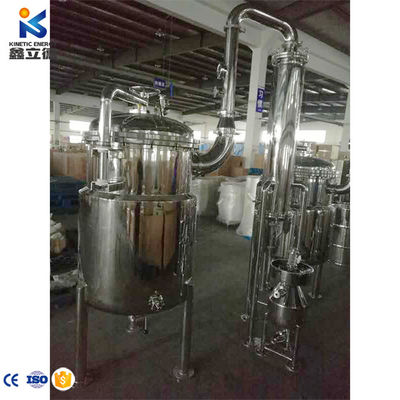

Essential Oil Distillers Main equipment:
1, Extracting tank 2, Oil-water separator 3, Receiver 4, Oil cooling system 5, Plate distillation system
6, Vacuum system 7, Frame 8, Pipes 9, Valves 10, Digital temperature sensor.
| Name | Model No. | Technical Specification |
| Inverted vertebral body oil extraction equipment | LSZL-500 | 1, Main Parts: Distillation Kettle,demister,condensing tower,oil water separator,boiler(gas),duplex strainer,tubes.
2, Distillation still Actual volume:500L Using steam through heating, heat transfer area of 5m2. Kettle: Designed pressure 0.09Mpa. Working pressure: atmospheric Designed temperature:120℃.working temperature≤100℃ Medium: water A slag Outlet: pneumatic slag gate, diameter 1100mm
3, Demister: DimensionΦ200×500,according to GMP
4,Condensing tower: vertical, heat transfer area more than 2.5 m2 Tube pass: Designed pressure:atmospheric Designed temp:100℃, working temp:≤100℃ Medium: Secondary Steam Tube Pass: Φ25×2. Shell Pass: Designed pressure: 0.3Mpa, working pressure:atmospheric Designed temp.:80℃, working temp:15~30℃ Medium: cooling water
5,Pure Dew storage tank: SS 304 material, volume 450m³

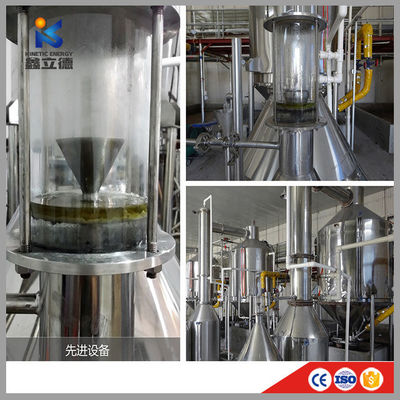

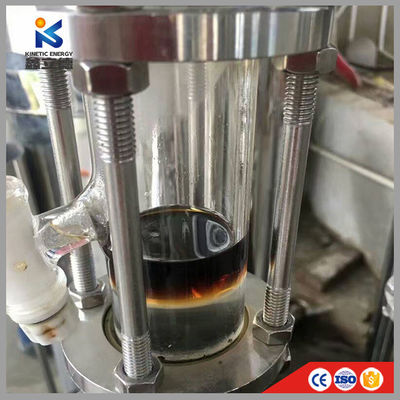

6,Oil water separator:professional oil-water separator, stainless steel tank, glass, as the cup, the tank volume of 40L .
7,Duplex strainer:20 mesh filter, flow 2.0m3 / h, material for the S30408.
8,Accessories:A thermometer, a pressure gauge, a mirror.
9,Boiler(gas): LPG, natural gas, coal gas,liquid gas ,consumption 4.5kg/h. Working voltage:220-240V, Fan power: 120W,Steam temp.:105℃/100℃, working pressure:Low, Steam output:100kg/h Water Pressure :0.12~0.5mpa. Safety devices: over-temperature, overpressure, water, gas automatic protection |
| Description | Raw material | Description | Raw material |
| Gaultheria procumbens | Gaultheria procumbens leaf | Cinnamomum cassia | Cinnamomum cassia |
| Achillea millefolium | Achillea millefolium flower | Santalum album | Santalum album |
| Cymbopogon nardus | Cymbopogon nardus | Matricaria chamomilla | Matricaria chamomilla |
| Pimenta dioica | Pimenta dioica seeds | Anthemis nobilis | Anthemis nobilis flowers |
| Angelica archengelica | Angelica archengelica root | Cinnamomum zeylanicum | Cinnamomum zeylanicum Wood core and root core |
| Angelica archengelica | Angelica archengelica seeds | Salvia sclarea | Salvia sclarea Leaf |
| Pimpinella anisum | Pimpinella anisum seeds | Eugenia caryophylatta | Eugenia caryophylatta bud |
| Arnica montana | Arnica montana root | Eugenia caryophylatta | Eugenia caryophylatta Leaf |

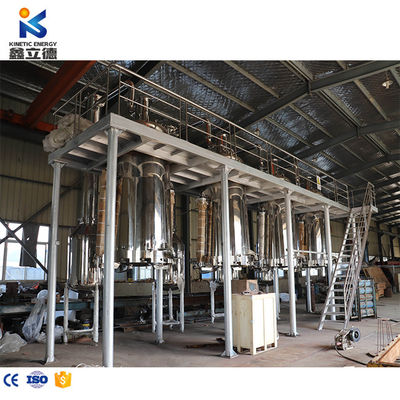

Factory production process:
Wuhan KINETIC brand, essential oil distillation machine,famous,advanced and with top quality in China.We had specialized in essential oil extracting technology and equipment for more than 20 years,serviced for thousands of customers all over the world.
Certification :
FAQ:
Q:What does HDC need from me to quote a price?
1.Raw material
2.Production capacity per batch
Q:What is the oil yield?
The oil yield depends on oil content of your material.If the oil content of your material is high,you can get more essential oil.
Q:Can I use the machine to extract several kinds of raw materials?
Yes,of course.
Q:Can I do extraction test with my own raw material?
Yes,of course.We can do extraction test and send you videos and test report for your Reference.
Q:What heating way does your machine support?
Electricity/gas/wood/steam heating.
Q:What is your material of your machine?
Stainless steel(Standard type is SUS304,it can be customized according to your request)
Q:How long does it take to produce the machine once I place my order ?
Usually the delivery time is 30 working days after prepayment received.
Q:What is the minimum quantity I must order?
We don’t technically have minimums, but if you order more than 3 sets once,we can give you a discount.
Q:Do you have machines in stock?
No,our machine is produced according to your request.
Q:How will my order be packed, can you provide the installation service?
Packed in plywood case. We will send English manual. If customer need, we will send one engineer for assembling and training for workers. USD120 per person per day, food, accommodation and air-ticket will be on clients.
|
|
