| Price: | CN¥130,057.20-404,745.24/sets |
Product Structure:

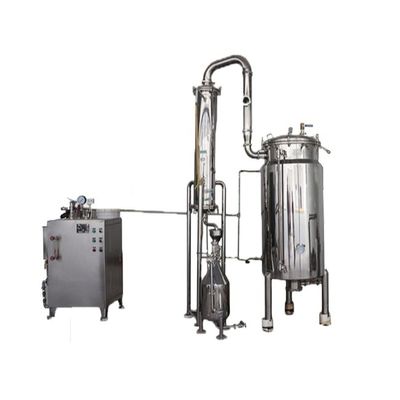

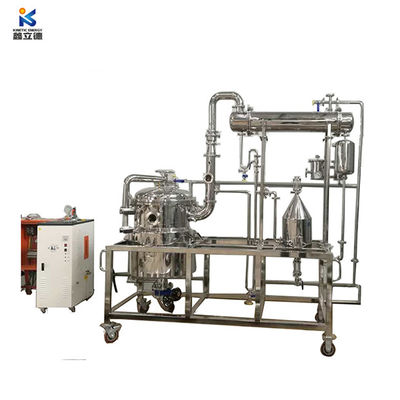

The device consists of inverted vertebral distillation kettle, demister, condensing tower, oil-water separator, double filter, supercharger, material conveyor belt and essential oil, pure dew collection tank, pure dew storage tank, food grade pump and other related pipelines composition. Equipment internal surface polishing Ra≤0.6μm,Outer surface matte treatment Ra≤0.8μm,To ensure that no health dead ends, in line with GMP requirements.
Essential oil distillation extracting equipment Main parameters
Distillation kettle | Effective volume: 3000L, using high-pressure steam through heating. Inside: working pressure: normal pressure;design temperature:120℃,work temperature≤100℃.Working medium:water; Upper oval headδ=5mm/S30408,Cylinder δ=5mm/S30408. Discharge slag door:DN1200, Three cylinder rotary slag gate, Single cylinder to open the door, two cylinder locking, a slag door with self-locking cylinder. |
Demister | Size Φ300×750,δ=3mm/S30408,Demister inside has baffle, The top of the demister is set to the quick opening hole. Demister to facilitate cleaning.Meet the GMP requirements. |
Condenser | Vertical condenser. Heat transfer area is greater than10m2 . Pipeline:designed pressure: normal pressure;working pressure: normal pressure;design temperature:100℃, work temperature≤90℃. Working medium:Secondary steam. Length:Φ25×2,Material: S30408 |
1)By steam-distillation to reach the extraction of essential oils.
2)Easy operation. One people can operate this machine easily .
3)High efficiency. Using indirect heating of heat- transfer oil, it can quickly reach 100C high temperature under the conditions of cleanness, safety and atmospheric pressure. If required, with vacuum pump, the extraction
speed of essential oils will be ore faster.
4)Compact structure.
1)Extracting tank

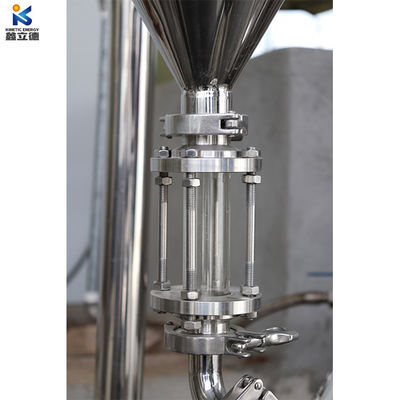

2)Oil-water separator
3)Receiver
4)Oil cooling system
5)Plate distillation system
6)Vacuum system
7)Frame
8)Pipes
9)Valves
10)Digital temperature sensor.
10L 100L 300L
500L 1000L 3000L
|
|
| Price: | CN¥130,057.20-404,745.24/sets |
| Packaging Details: | poly wood package for sea freight
Professional peppermint essential oil distiller Lemon Citrus Essential Oil Distillation Equipment |
Product Structure:
The device consists of inverted vertebral distillation kettle, demister, condensing tower, oil-water separator, double filter, supercharger, material conveyor belt and essential oil, pure dew collection tank, pure dew storage tank, food grade pump and other related pipelines composition. Equipment internal surface polishing Ra≤0.6μm,Outer surface matte treatment Ra≤0.8μm,To ensure that no health dead ends, in line with GMP requirements.
Essential oil distillation extracting equipment Main parameters
Distillation kettle | Effective volume: 3000L, using high-pressure steam through heating. Inside: working pressure: normal pressure;design temperature:120℃,work temperature≤100℃.Working medium:water; Upper oval headδ=5mm/S30408,Cylinder δ=5mm/S30408. Discharge slag door:DN1200, Three cylinder rotary slag gate, Single cylinder to open the door, two cylinder locking, a slag door with self-locking cylinder. |
Demister | Size Φ300×750,δ=3mm/S30408,Demister inside has baffle, The top of the demister is set to the quick opening hole. Demister to facilitate cleaning.Meet the GMP requirements. |
Condenser | Vertical condenser. Heat transfer area is greater than10m2 . Pipeline:designed pressure: normal pressure;working pressure: normal pressure;design temperature:100℃, work temperature≤90℃. Working medium:Secondary steam. Length:Φ25×2,Material: S30408 |
1)By steam-distillation to reach the extraction of essential oils.
2)Easy operation. One people can operate this machine easily .
3)High efficiency. Using indirect heating of heat- transfer oil, it can quickly reach 100C high temperature under the conditions of cleanness, safety and atmospheric pressure. If required, with vacuum pump, the extraction
speed of essential oils will be ore faster.
4)Compact structure.
1)Extracting tank
2)Oil-water separator
3)Receiver
4)Oil cooling system
5)Plate distillation system
6)Vacuum system
7)Frame
8)Pipes
9)Valves
10)Digital temperature sensor.
10L 100L 300L
500L 1000L 3000L
