| Price: | CN¥130,057.20-404,745.24/sets |
Product Structure:

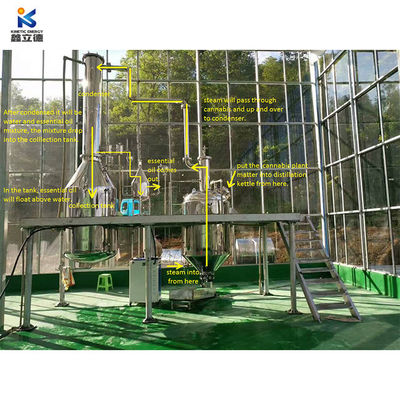

The device consists of inverted vertebral distillation kettle, demister, condensing tower, oil-water separator, double filter, supercharger, material conveyor belt and essential oil, pure dew collection tank, pure dew storage tank, food grade pump and other related pipelines composition. Equipment internal surface polishing Ra≤0.6μm,Outer surface matte treatment Ra≤0.8μm,To ensure that no health dead ends, in line with GMP requirements.
Essential oil distillation extracting equipment Main parameters
Distillation kettle | Effective volume: 3000L, using high-pressure steam through heating. Inside: working pressure: normal pressure;design temperature:120℃,work temperature≤100℃.Working medium:water; Upper oval headδ=5mm/S30408,Cylinder δ=5mm/S30408. Discharge slag door:DN1200, Three cylinder rotary slag gate, Single cylinder to open the door, two cylinder locking, a slag door with self-locking cylinder. |
Demister | Size Φ300×750,δ=3mm/S30408,Demister inside has baffle, The top of the demister is set to the quick opening hole. Demister to facilitate cleaning.Meet the GMP requirements. |
Condenser | Vertical condenser. Heat transfer area is greater than10m2 . Pipeline:designed pressure: normal pressure;working pressure: normal pressure;design temperature:100℃, work temperature≤90℃. Working medium:Secondary steam. Length:Φ25×2,Material: S30408 |
Our essential oil extraction equipment,health products,biological drugs,cosmetics and food .This uses technology and chemical separation,can extract plant components efficiently by steam distillation , have good effect in collecting essential oil from plants.
(1)By steam-distillation to reach the extraction of essential oils.
(2)Easy operation. One people can operate this machine easily .
(3)High efficiency. Using indirect heating of heat- transfer oil, it can quickly reach 100℃ high temperature under the conditions of cleanness, safety and atmospheric pressure. If required, with vacuum pump, the extraction speed of essential oils will be ore faster.
(4)Compact structure.It covers only about 1.5 square meter.
This versatile distiller can be used for water distillation or water steam distillation.
This is our most versatile distiller.
It can be used for either water distillation (where the plant meterial is submersed in water) or as a water/steam distiller (where the column keeps plant material from direct contact with water).
It can easily be used to make essential oils from plants such as Lavender , Rosemary , Pine and Fir Needles , Peppermint , Basil , Eucalyptus Leaves etc.
This distiller is available in either propane or electric, depending on your needs.
Packing | ||
Size | To be determined | |
Weight | ||
Packaging Details | The normal package is wooden box. If export to European countries, the wooden box will be fumigated.If container is too weight, we will use per film for packing or pack it according to customers special request. | |
Delivery | ||
Tool | Ship, express or Air | |
Packing | In containers | |
Shipping Details | The normal shipping method is by sea. We also accept Air Transporting if you are in urgent need. You can contact your own shipping agent or ask us to arrange shipping for you. | |
Wuhan KINETIC is an is a Professional and modern grain and oil machinery engineering equipment manufacturer integrating research, manufacturing and installation. We have obtained rich experience and practice in palm fruit oil machine, vegetable oil pretreatment, prepress,extraction, sophisticated technology and equipment designs etc, owing wide international market in more than 130 countries and regions.
With more than 30 years of experience on oil making machine, we provide a comprehensive range of products
We are proud to guarantee that, with our strong technical background and communication capability, our sales/support engineers are able to answer your most complicated technical questions over the phone in English. That would save a lot of time for communication.
The following pictures show our factory and customers in our workshop.
Q1: What is the Warranty for the machines?
A1: 1 year for free.
Q2: What is the Material?
A2: Stainless steel.
Q3: When can I get the price?
A3: Within 24 hours, if urgent, please directly call us.
Q4: Whether the machine price can be more discount?
A4: In general, our MOQ is 1set with very reasonable price, but if large order, we also can apply to our Manager to appropriately give you a little discount.
Q5: How to ask quotation?
A5: Please note us what type of raw materials , and how many kgs of raw materials you want to treat per batch, then we will send you quotation as soon as we can.
Q6: Can we ask the oil plant for different types of oil?
A6: Yes, but we recommend no more than 3 different types.
Q7: Essential oil plants require how large of a workspace?
A7: The land area typically depends on the capacity of the plant. We can suggest an appropriate space to prepare after given specifications, or, can design the oil plant in-house specifically to the amount of workspace available.
Q8: How long will it take to receive my products?
A8: As a general rule, it will take one Month for us to produce.
Q9: Do you offer oversea installation?
A9: We'll send professional installation engineer to help you install the equipment, as well as training your workers freely.
|
|
