High Capacity Palm Oil Processing Machine Malaysia for Cold Hot Pressing Production

Price:	CN¥86,704.80/sets 1-9999 sets

Detail Information

Product Description

Detail Information

Certification:

ISO CE

Max Capacity:

1000TPD

Condition:

New

Usage:

Palm Oil Mill Inclined Fuel Recycle Scraper

Type:

Cold & Hot Pressing Machine

Automatic Grade:

Automatic

Production Capacity:

20-1000TPD

Place Of Origin:

China

Brand Name:

Kinetic

Voltage:

380V/440V

Dimension(l*w*h):

48m*12M*15M(30TPD)

Weight:

10toms

Warranty:

1 Year

Key Selling Points:

Energy Saving

Oil Type:

Palm Oil

After-sales Service Provided:

Engineers Available To Service Machinery Overseas, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support

Bleaching Earth Consumption:

5~50Kg/Toil

Usage:

Press Palm Fruit Oil

Sterilizer Type:

Horizontal Or Vertical

Raw Material:

Carbon Steel & Stainless Steel

Capacity:

20TPD, 30TPD. 50TPD, 100TPD, 200TPD, 500TPD, 1000TPD...

Color:

Clients' Requirements

Advantage:

Continuous Production Line, Full Automatic, Energy Saving

Name:

Oil Press

After Warranty Service:

Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Local Service Location:

None

Applicable Industries:

Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Construction Works , Energy & Mining, Advertising Company

Showroom Location:

None

Marketing Type:

Hot Product 2019

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Warranty Of Core Components:

1 Year

Core Components:

Motor, Engine

Port:

Qingdao, Shanghai ,wuhan

Packaging Details:

Plywood, international standard trade packing.
palm oil extraction machine price, palm oil processing machine malaysia

Supply Ability:

3 Set/Sets per Month palm oil extraction machine

Product Description

Products Description

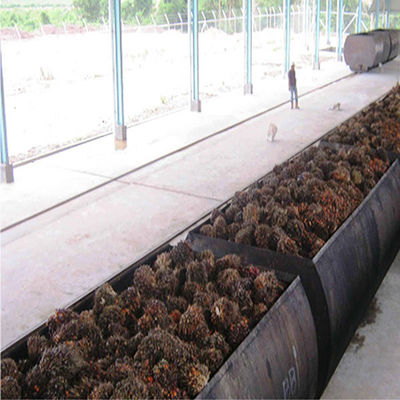

a. Palm fruit reception:
Transport FFB to reception station, flow to the scraper conveyer, conveyed to sterilizing station.
b. Sterilizaiton:
FFB transported by scraper conveyer fall into sterilizing tank, make FFB soft,get more oil yield. sterilizing time 90~120mins,
temperature 130~145°C
c.Threshing:
After sterilizing, fruit bunch transported to thresh machine, separate palm fruit and empty fruit bunch.
d:Digesting:
Before press palm fruit, should be crushed separated pulp and kernel
e.Oil press:
After crushing and digesting, the maxture of palm fruit and kernel fall into special palm oil presser
f.Clarification:
Filter the oil and use centrifuge to separate oil and impurities.
g. Kernel recovery:
After press, the kernel and cake will be transported to kernel recovery station. Separating nut and shell, then go to kernel oil
press.

Product Paramenters

Palm FFB Pressing Line	Capacity	tons/hour	0.5-500
		Raw Material	Food grade	CS/SS
		Oil Output	tons/hour	0.1-100
Palm Kernel Pressing Line	Input Capacity	tons/hour	0.1-400
		Raw Material	Food grade	CS/SS
		Oil Output	tons/hour	0.06-250
Crude Oil Refining and Fractionation	Capacity	tons/hour	1-200
		Raw Material	Food grade	CS/SS
		Oil Output	tons/hour	0.96-192

Manufacturing Technique

palm oil refinery & fractionation workshops：
(1)Degumming: This is the most important section of hydrate de-gumming, manage the adding water (there is a little P-acid in the
water) amount, temperature and add water speed, usually water adding amount is about 3 times of phospholipid content, that is
3-10% oil weight, water temp needs to be higher than oil temp.
(2)Deacidification:This part adopt alkali refining method, that is use alkalis like (NaOH) to neutral the free fatty acid in oil,
during this process it will produce soapstock , then separated from the oil by setting several hours. NAOH solution, not only
neutral free fatty acid, also can act with other matters like protein, mucus, phospholipid, pigment. After settling, release the
soapstock from the tank bottom. Adding hot water to rinse, remove off the leftover lye , soap and some unhydrated phospholipid in
the oil. Finally pumping out soapstock from the tank bottom
(3)Decolorization: In normal situation , there is pigment in the crude oil , we need to using the active clay to absorb the
pigment away , after 20 mins , we use the vibrating filter to filter the waste clay away . If you want to get light color oil ,
you need to add more active clay . That is mean , the customer can accord to his requirement to control the oil color. This
process is carried out under the vacuum condition.

What is oil palm oil fractionation plant?
Oil is consist of triacylglycerol with different melting point under a temperature, separate the olein and stearin by their
different melting point (melting tem33℃-39 ℃,faint yellow color) and melting percentage, this is oil fractionation.
Significance of palm oil fractionation plant

1.effect the oil use value: for making food product like shortening and margarine etc, if the olein in oil is low, the food will
be more stable, and can storage longer time.
2.Some first grade vegetable oil has a strict demand on the clarity, if the stearin is high in oil, the oil will seems cloudy
After the refined palm oil is fractionated, you can get two parts:
(Palm) Olein is used for edible oil, frying oil.
(Palm) Stearin is used for shortening oil, pastry, butter, soap and chemical product.

drawing

Other pictures

Shipping

Company Profile

FAQ

Q1: What is the Material?
A1: Stainless steel or carbon steel.
Q2: When can I get the price?
A2: Within 24 hours, if urgent, please directly call us.
Q3: Whether the machine price can be more discount?
A3: In general, our MOQ is 1set with very reasonable price, but if large order, we also can apply to our Manager to appropriately
give you a little discount.
Q4: How to ask quotation?
A4: Please note us what tpye of raw seeds , and how many tons of raw seeds you want to treat per day, then we will send you
quotation as soon as we can.
Q5:Does the screw oil press need to be heated?
A5:Yes, it does. Preheat with dry oil cake for 30 minutes before feeding seeds normally.
Q6: How many people are required to operate this screw oil press?
A6: 1-2 people can operate.
