380V/50HZ/Triple phase 200A-3 Automatic Screw Oil Press Machine for Cotton Seed and Corn Oil Extraction

Price:	CN¥36,127.00-108,381.00/sets

Detail Information

Product Description

Detail Information

Certification:

CE ISO

Max Capacity:

100 T/d

Condition:

New

Usage:

Making Edible Oil

Type:

Cold & Hot Pressing Machine

Automatic Grade:

Automatic

Production Capacity:

98%-100%

Place Of Origin:

Henan, China

Brand Name:

Kinetic

Voltage:

380V/50HZ/Triple Phase

Dimension(l*w*h):

2900*1120*1850mm

Weight:

4500 Kg

Warranty:

1 Year

Key Selling Points:

High Productivity

Oil Type:

Flax Seed Oil, Soybean Oil, Rap Seed Oil, Tea Seed Oil, Basil Oil, SESAME OIL, Pinenut Oil, Sunflower Seed Oil, Almond Oil, Walnut Oil, Coconut Oil, OLIVE OIL, Palm Oil

Product Name:

Cotton Seed Oil Mill Machinery

Raw Material:

Cotton Seeds ,sunflower,soybean,copra Rapeseed

Section:

Pretreatment, Extraction,refining

Oil Rate:

Meal Residual: ≤ 1%, Press Cake Residue ≤ 6%

Capacity:

10-100 T/d

Material:

Carbon Steel And Stainless Steel

Price:

Bottom Price, Factory Price

Color:

Clients' Requirements

After Warranty Service:

Online Support

Local Service Location:

None

After-sales Service Provided:

Video Technical Support, Online Support

Applicable Industries:

Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Food Shop, Energy & Mining, Food & Beverage Shops, Other

Showroom Location:

None

Marketing Type:

Hot Product 2019

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Warranty Of Core Components:

1 Year

Core Components:

Motor

Port:

Qingdao,Shanghai,Wuhan

Packaging Details:

Plywood, international standard trade packing
200A-3 Screw oil expeller Automatic screw oil press machine /cotton seed oil press machine /corn oil pressers

Supply Ability:

600 Set/Sets per Month

Product Description

Product Description

Large scale crude oil extraction machine is mainly used in the middle and large scale oil mill plants for vegetable and biodiesel oil processing. These large oil presses are generally divided into two kinds: oil press for hot pressing, and low temperature oil press for cold pressing. The large scale oil press extraction machines we supply is suitable for extraction of vegetable oils from oil bearing seeds and nuts, such as rapeseeds, grounnut, sesame seeds, cottonseeds, soybean seeds, corn germ, copra, sunflower seeds, etc.

For the whole process of crude oil extraction machine, Please see below.
The meal is fed through the inlet opening (1) into every stage of the steaming kettle (2), (3), (4) and is then gradually heated
up and stirred by the stirrer. Blades from one stage to another. After being pushed out from the outlet (5) of the bottom stage,
it drops into the feed head (6) and is delivered to the pressing cage (7) to be compressed by various sections of the pressing
worms therein. The extracted oil flows through gaps between cage bars into the oil screw conveyor (8) and thence to an oil
reservoir, whereas the cake is discharged at the rear of the machine. All this shows that the whole process of oil extraction,
beginning from feeding, steaming, heating up to oil and cake discharging, is fully automatic and continuous. Therefore, when once
the amount, the temperature and the moisture of seeds and the thickness of cake have been set, the operator needs only to observe
the feed indicating pointer, steam pressure gauges and ammeter and make adjustment when necessary, thus minimizing the requirement
of supervision and greatly saving labor.

Product Structure

Main Parts Of The Automatic Oil Press Machine:
1.screw shaft
2.feeder
3.pressing cage
4.oil pan
5.squeezing bolt
6.vacuum oil filter system
7.electric control system
8.heating ring

Operate Processing Of The Automatic Oil Press Machine:
1.stir-fring the seed
2.feed in the oil seed
3.pressing the seed in the pressing chest
4.oil drip on the oil pan from the squeezing bolt
5.then oil inflow the vacuum oil filter pan by the vacuum system
6.then pure oil come out of the filter
7.ready

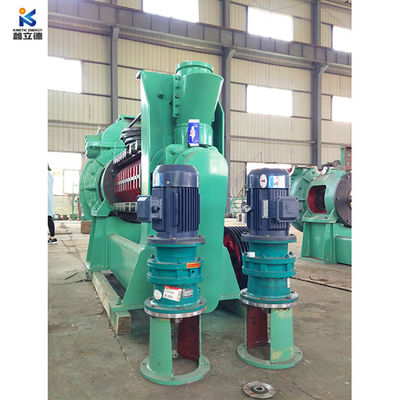

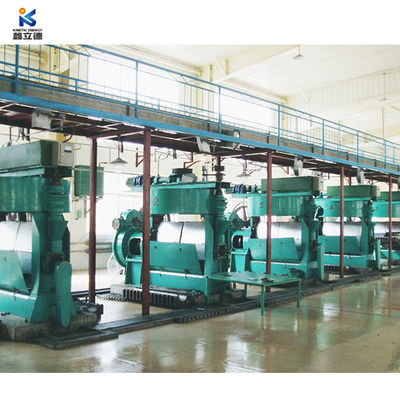

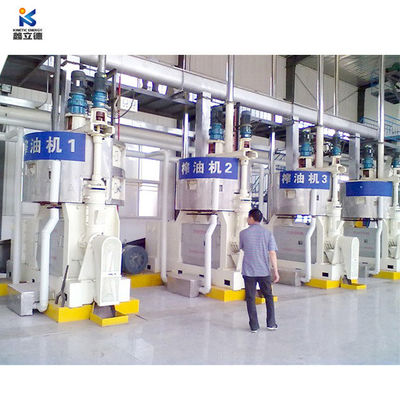

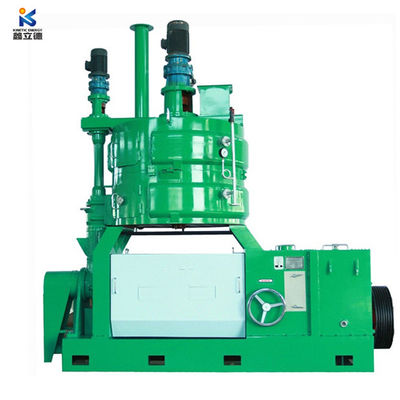

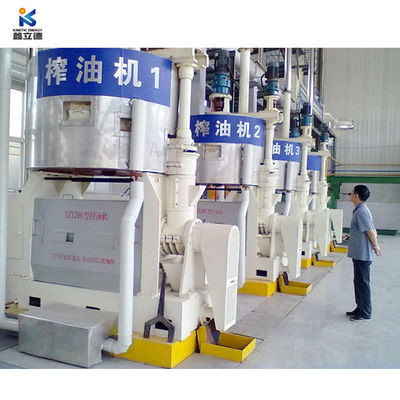

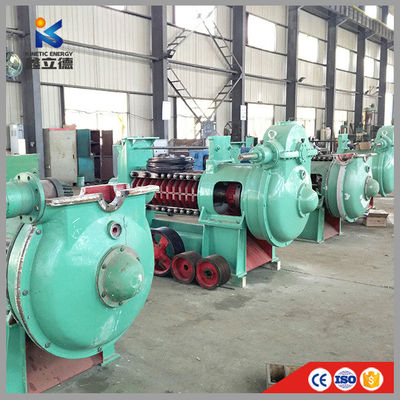

Product Show

Specification

The large screw crude oil extraction machine (oil expeller) is designed to use physical mechanical pressing way to press oil out from the oil seeds. Single machine capacity 10-200TPD.

Model	Capacity	oil content in cake	Motor power(kw)
202	40-50 TPD	less than 13%	30
204	75-80 TPD	15-18%	30
LYZX24	20-25 TPD	10-19%	30+5.5+3
LYZX28	40-60 TPD	15-19%	45+11+1.5
LYZX32	80-100 TPD	15-19%	90+.5+1.5
LYZX34	150-180 TPD	11-15%	160
SYZX12	4-6 TPD	4-6.5%	18.5+1.1
SYZX24	Hot pressing 80-100 TPD	10-17%	55+7.5
SYZX24		Cold pressing 40-50 TPD	55+7.5	5-7%

Our Advantages

1. Energy Saving:The electric power can be reduced by 40% under the same output. For example, the machine can save 6 kilowatt at an average of one hour. In that case, it could save about 30 RMB per day.
2. Labor Saving:60% labor can be saved under the same output. One or two person can organize the production. It can save about 40 RMB of labor cost every day.
3. Widely Usage:The machine is multi-function. It can process more than 20 kinds of oil crops, such as, peanut, linseed, sesame,rapeseeds, sunflower, cottonseeds, soybean, etc.
4. Oil Pure:Vaccum filter can filter the residue and ensure the oil quality. The oil can meet the standard of health quarantine.
5. Small Area Covering: 10 ~ 20 m2can meet the production needs.

1.Large processing capacity
2.Combined Steaming & Cooking

3.Lower energy consumption
4.Automatic and Continuous Operation

5.Flexible production
6.Higher quality oil and cake & Steady oil yield
7.Perfect Construction, Simple Control and Durable service

Packing & Delivery

Company Profile

FAQ

Q1: What is the Material?
A1: Stainless steel or carbon steel.
Q2: When can I get the price?
A2: Within 24 hours, if urgent, please directly call us.
Q3: Whether the machine price can be more discount?
A3: In general, our MOQ is 1set with very reasonable price, but if large order, we also can apply to our Manager to appropriately
give you a little discount.
Q4: How to ask quotation?
A4: Please note us what tpye of raw seeds , and how many tons of raw seeds you want to treat per day, then we will send you
quotation as soon as we can.
Q5:Does the screw oil press need to be heated?
A5:Yes, it does. Preheat with dry oil cake for 30 minutes before feeding seeds normally.
Q6: How many people are required to operate this screw oil press?
A6: 1-2 people can operate.
