Introduction for hydraulic oil press :

The product can be processed in about 5-7 minutes with the user's own eyes. Users call "safety oil".

6YZ-230 hydraulic oil press advantages:

1. Energy-saving--40% reduction in power consumption at the same output, an average of 6 kWh per hour saved, and $5 per day saved in production.

2. Provincial labor-equal output can save 60% of the labor force, one to two people can organize production, saving about 40 yuan a day.

3. widely used, combined with filtration and press.

Hydraulic oil press machine can also use for cocoa liquor press with very good effect.

Our machine compared with the old equipment, the normal oil yield can be 2-3 points higher, and the average output per 100 kilograms of peanut can be 2-6 kilograms more, which is economical and practical.

How to operate the hydraulic oil press machine?

Step 1: Before running, clean the oil tank, feed enough clean hydraulic oil, check every bolts if they are loose, check circuit if they connect well. Then pre-heating, 50-70℃ in summer and autumn, 70-90℃ in winter and spring. Finally run 1-2 minutes. When the oil changes thick in winter and spring, then run 5-10 minutes.
Step 2: Exhaust lampblack from the cooked oilseed, put it into the basket, then put the mat and separation board.
Step 3: Lift the hand shank of the manual valve, turn on to press. There must be a person when the main engine boosts. When reaching 55Mpa, it stops.
Step 4: When the pressure drops to 45MPa, the electric controlling system will turn on itself and the pressure will rise back. When there is no oil exuding, then finish the pressing.
Step 5: Turn off, press the hank shank downward to make the squeezing tank away 10mm. Then lift the hand shank and open the top plate.
Step 6: Turn on, oil cake rises to make the top plate tower above 5mm. Then turn off and take out separation board and mats and oil cake.
Step 7: Press the hand shank down, the plunger declines and start to press second time.

Application scope:

The hydraulic oil press machine is our new and original product, it is suitable for cold pressing and hot pressing of anything containing oil,such as olives, sesame, peanut kernel,walnut Kernel,Chili oil etc.It saves more space than traditional oil press and can be operated easily and conveniently. What’s more, it is multi-functional.

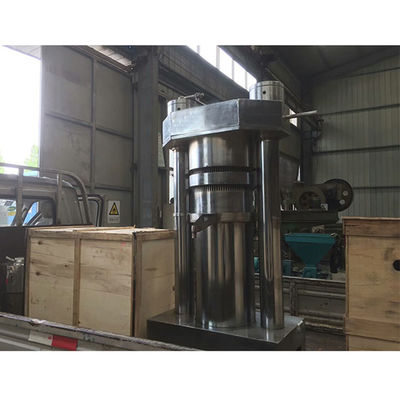

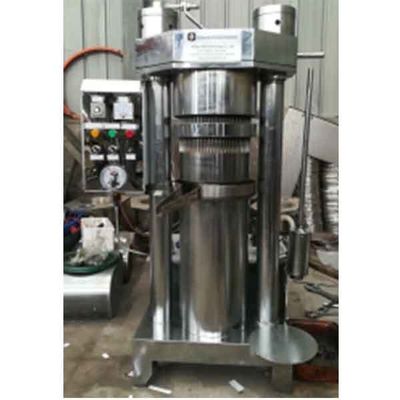

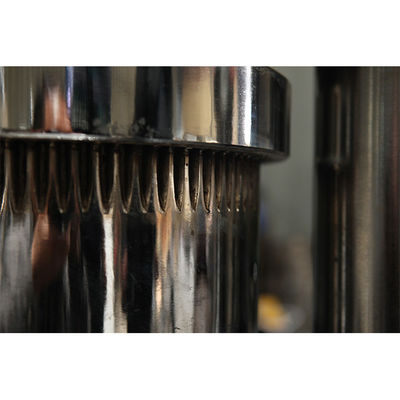

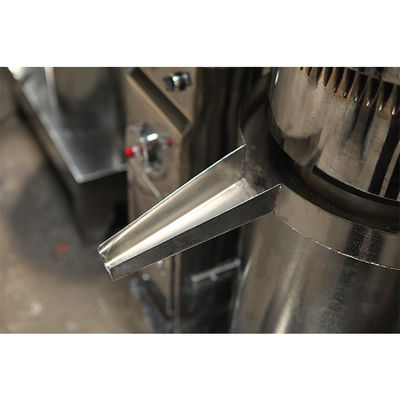

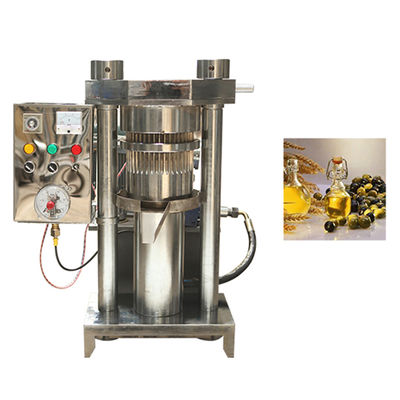

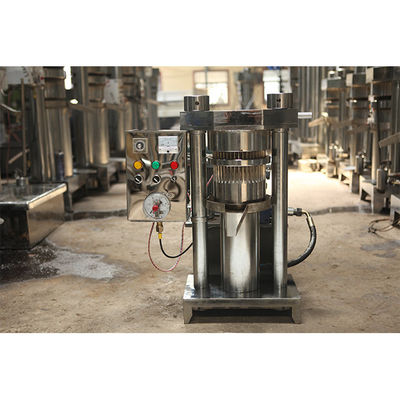

Hydraulic sesame cocoa liquor walnut oil press machine details

Structure of  hydraulic oil press machine

Hydraulic sesame cocoa liquor walnut oil press specification:

Kinetic (Hubei) Energy Equipment Engineering Co., Ltd. is a professional and modern grain and oil machinery engineering equipment manufacturer integrating research, manufacturing and installation. We have obtained rich experience and practice in oil machine, sophisticated technology and equipment designs etc.

Q1: What is the Material?
A2: Carbon steel suitable for pressing.

Q2: When can I get the price?
A2: Within 24 hours, if urgent, please directly call us.

Q3: Whether the machine price can be more discount?
A3: In general, our MOQ is 1set with very reasonable price, but if large order, we also can apply to our manager to appropriately give you a little discount.

Q4: How long will it take to receive my products?
A4: Generally, it will take about 5 days to make the machinery, 3-7 days to deliver it to
shipping port, and 10-45 days on sea transporting.

Q5: Is the machine suitable for different raw material ?
A5: Yes, but we recommend no more than 3 different types.
