| Model Number: | 6YL-120A |
| Price: | CN¥44,074.94/units 1-9999 units |
Product parameters:
| Brand:kinetic | Model:6YL-120A | Capacity:200-300Kg/h |
| Packing size:2150*770*1800 | Power:11KW | Electric machinery:380V |
| Worm Speed:40rpm | worm diameter:120mm | Residual oil rate:6-8% |
6YL-120A oil presser introduction:
6YL-120A is a combination of heating, pressing and filtering, which is developed by our company. Using electric heating tube to heat the chamber can automatically control the pressing temperature of the oil. It can increase the pressing temperature to the oil material in a short time and improve the oil production rate. Moreover, the unique vacuum filter oil is used to purify the crude oil quickly. The machine is suitable for hot pressing soybean, sesame, rapeseed, peanut and other oil crops, and can be modified into cold pressing machine according to the needs of users.
6YL-120A oil presser application:
This machine is widely used in processing rapeseed, cottonseed, soybean, peanut kernel, sesame seed, tea seed, sunflower seed, Tung seed, olive, coconut fruit, palm fruit (kernel) and so on. It can also be used in the powder oil of rice bran, corn germ and other small wild plant oil, such as safflower and so on. It is the best choice for small and medium-sized vegetable oil plants and individual oil shops.
These below are the mainly oil seeds:
| Material | Oil press rate(%) | Cookie thickness(mm) | residual oil rate(%) |
| Sesame | 42-55 | 1.0-1.5 | <=7 |
| Peanut | 40-50 | 0.8-2.0 | <=8 |
| Rapeseed | 28-38 | 1.0-1.5 | <=8 |
| Oil sunflower | 28-35 | 1.2-1.5 | <=8 |
| Soybean | 10-16 | 0.8-1.5 | <=7 |
| Flax | 33-40 | 0.8-1.5 | <=7 |
| Cotton seed | 11-25 | 1.0-2.0 | <=6 |
| walnut | 42-52 | 0.8-1.5 | <=6 |
| Camellia seed | 26-38 | 1.0-2.0 | <=6 |
Advantage of 6YL-120A Integrated oil press:
1. The machine adopts vacuum filtration, electric heating and automatic control of electrical appliances.
2 The control cabinet can be used for both motor and heater.
3. It is able to save labour, about 60%. One or two person is for per machine
4. Protection the environment, comparing with the traditional oil press machine, it is about to meet the standard of green environment.
5.high oil yield Low investment, get more profit, (the oil can be eaten directly).
Structural introduction:
1).This series of units mainly consists of five parts: automatic control part, heating and pressing part, adjusting part, transmission part and vacuum oil filtering part.

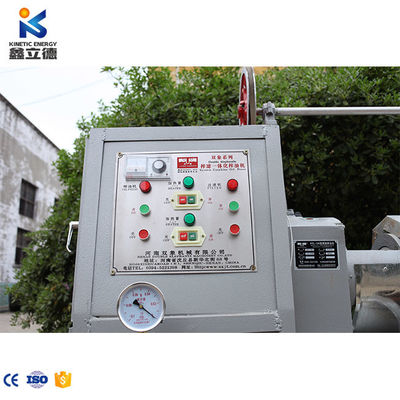

2).The automatic control system includes: air switch, AC contactor, temperature control instrument, circuit automatic protection device and so on.
3).The heating and pressing part is composed of a heater, a screw and a pressing bar, and a body assembly.
4).The transmission part consists of main shaft and reducer, pulley, motor wheel and so on.
The adjustment part is composed of adjusting screw, adjusting nut, sub handle, locking nut and so on.
5) The vacuum oil filter part is made up of vacuum pump and oil filter barrel.

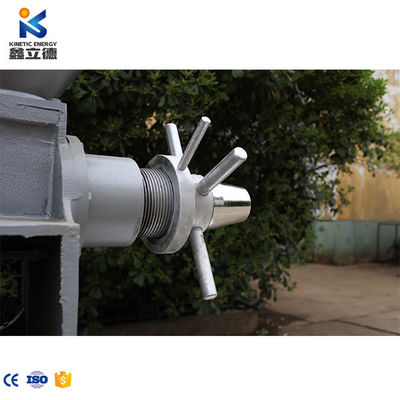

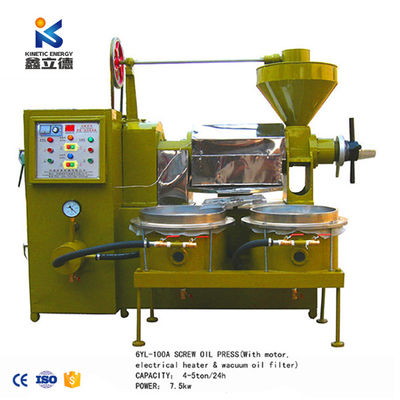

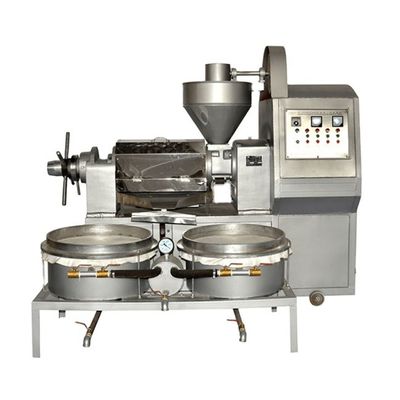

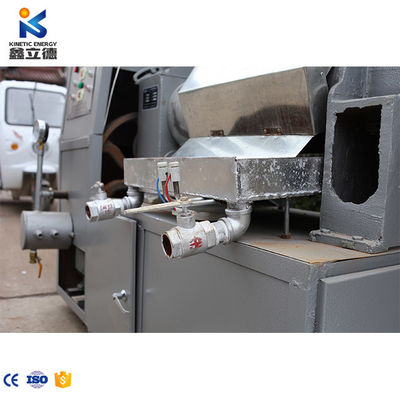

Detail show:

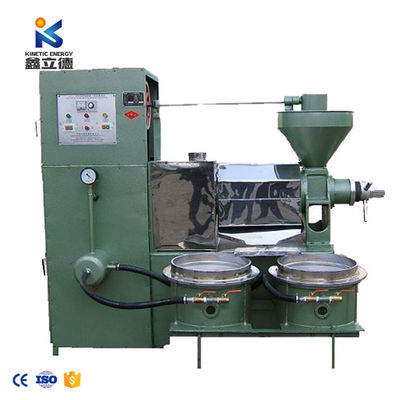

Other model:
Shipping pictures:
Certification:
FAQ:
1.How to choose the suitable model for my business?
Tell us yuur reqirment for machine and our sales team will work with engineer to outline the best mode for you.
2.Do I need assemble the machine when it reach to my place?
No need,the machine is installed before shippment.
3.What should I do,if I do not know how to use the model?
We have machine operation video and paper manuel for your study before putting into usage?
4.Is the spare part available when I need?
Yes,all the spare parts are available all the year at factory cost.
|
|
