| Price: | CN¥15,751.38-18,063.50/sets |

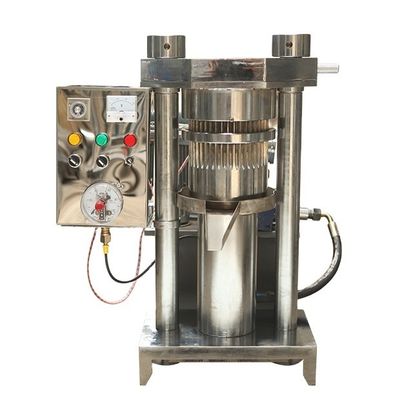

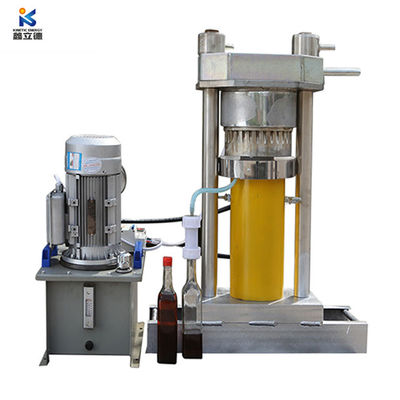

cocoa oil expeller commercial cocoa butter hydraulic oil press/ walnut oil press machine
Range of application:
The technical application of oil mill efficient intelligent integration is popular in the main oil production areas of the world. The oil mill is widely used in the squeeze of oil crops, such as peanut, soybean, rapeseed, sunflower, flax, walnut, suzi, almond, tea seed, cottonseed, sesame, corn germ,etc.
Features of Hydraulic Oil Press Machine:
According to the different requirements of oil varieties about temperature, the mill can automatically adjust the oil expelling temperature and oil refining temperature, no affection of seasons and climate, and can meet the best squeezing condition, which means that the squeeze can proceed all the year round. So the oil mill is the best choice for material processing, urban and rural oil plant, small and medium oil factory.
How to operate the hydraulic oil press machine?
Step 1: Before running, clean the oil tank, feed enough clean hydraulic oil, check every bolts if they are loose, check circuit if they connect well. Then pre-heating, 50-70℃ in summer and autumn, 70-90℃ in winter and spring. Finally run 1-2 minutes. When the oil changes thick in winter and spring, then run 5-10 minutes.
Step 2: Exhaust lampblack from the cooked oilseed, put it into the basket, then put the mat and separation board.
Step 3: Lift the hand shank of the manual valve, turn on to press. There must be a person when the main engine boosts. When reaching 55Mpa, it stops.
Step 4: When the pressure drops to 45MPa, the electric controlling system will turn on itself and the pressure will rise back. When there is no oil exuding, then finish the pressing.
Step 5: Turn off, press the hank shank downward to make the squeezing tank away 10mm. Then lift the hand shank and open the top plate.

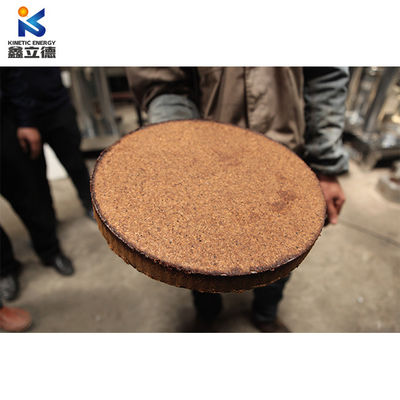

Step 6: Turn on, oil cake rises to make the top plate tower above 5mm. Then turn off and take out separation board and mats and oil cake.
Step 7: Press the hand shank down, the plunger declines and start to press second time.

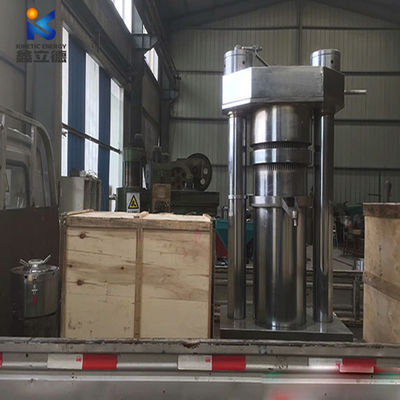

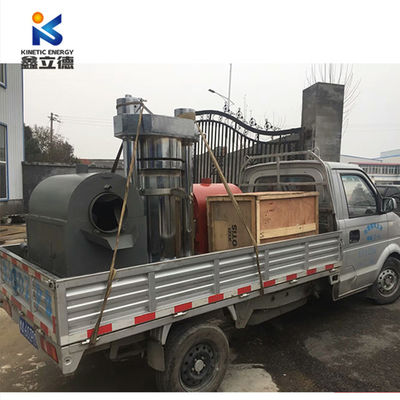

packing &delivery:
If you want to know more information, please "click"
| Model | Size(mm) | Weight(kg) | (mm) | Max work pressure(Mpa) | Heating ring power(KW) | Squeezing time(min) | Sesame pertime(kg) | Motor power(KW) |
| 6yz-150 | 400*500*850 | 210 | 150 | 55 | 0.6 | 8 | 2 | 0.75 |
| 6YZ-180 | 800*650*1100 | 750 | 185 | 55 | 0.8 | 8 | 4 | 1.5 |
| 6YZ-230 | 900*850*1550 | 900 | 230 | 55 | 0.9 | 10 | 8 | 1.5 |
| 6YZ-260 | 650*900*1450 | 1400 | 260 | 55 | 1.0 | 12 | 11 | 1.5 |
| 6YZ-320 | 1100*1000*1500 | 2000 | 320 | 55 | 1.2 | 12 | 15 | 1.5 |
|
|
| Price: | CN¥15,751.38-18,063.50/sets |
| Packaging Details: | International standard trade package, Plywood packing
cocoa oil expeller commercial cocoa butter hydraulic oil press/ walnut oil press machine |
cocoa oil expeller commercial cocoa butter hydraulic oil press/ walnut oil press machine
Range of application:
The technical application of oil mill efficient intelligent integration is popular in the main oil production areas of the world. The oil mill is widely used in the squeeze of oil crops, such as peanut, soybean, rapeseed, sunflower, flax, walnut, suzi, almond, tea seed, cottonseed, sesame, corn germ,etc.
Features of Hydraulic Oil Press Machine:
According to the different requirements of oil varieties about temperature, the mill can automatically adjust the oil expelling temperature and oil refining temperature, no affection of seasons and climate, and can meet the best squeezing condition, which means that the squeeze can proceed all the year round. So the oil mill is the best choice for material processing, urban and rural oil plant, small and medium oil factory.
How to operate the hydraulic oil press machine?
Step 1: Before running, clean the oil tank, feed enough clean hydraulic oil, check every bolts if they are loose, check circuit if they connect well. Then pre-heating, 50-70℃ in summer and autumn, 70-90℃ in winter and spring. Finally run 1-2 minutes. When the oil changes thick in winter and spring, then run 5-10 minutes.
Step 2: Exhaust lampblack from the cooked oilseed, put it into the basket, then put the mat and separation board.
Step 3: Lift the hand shank of the manual valve, turn on to press. There must be a person when the main engine boosts. When reaching 55Mpa, it stops.
Step 4: When the pressure drops to 45MPa, the electric controlling system will turn on itself and the pressure will rise back. When there is no oil exuding, then finish the pressing.
Step 5: Turn off, press the hank shank downward to make the squeezing tank away 10mm. Then lift the hand shank and open the top plate.
Step 6: Turn on, oil cake rises to make the top plate tower above 5mm. Then turn off and take out separation board and mats and oil cake.
Step 7: Press the hand shank down, the plunger declines and start to press second time.
packing &delivery:
If you want to know more information, please "click"
| Model | Size(mm) | Weight(kg) | (mm) | Max work pressure(Mpa) | Heating ring power(KW) | Squeezing time(min) | Sesame pertime(kg) | Motor power(KW) |
| 6yz-150 | 400*500*850 | 210 | 150 | 55 | 0.6 | 8 | 2 | 0.75 |
| 6YZ-180 | 800*650*1100 | 750 | 185 | 55 | 0.8 | 8 | 4 | 1.5 |
| 6YZ-230 | 900*850*1550 | 900 | 230 | 55 | 0.9 | 10 | 8 | 1.5 |
| 6YZ-260 | 650*900*1450 | 1400 | 260 | 55 | 1.0 | 12 | 11 | 1.5 |
| 6YZ-320 | 1100*1000*1500 | 2000 | 320 | 55 | 1.2 | 12 | 15 | 1.5 |
