All machines are guaranteed for one year free that we provide spare components except the wrong operation or damaged by people on purpose.
|
| Price: | CN¥28,901.60-70,086.38/sets |

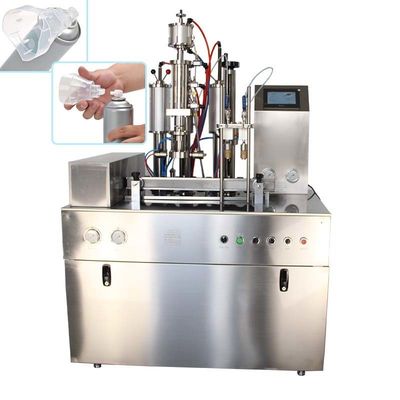

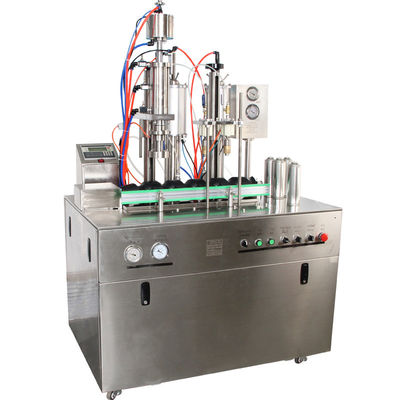

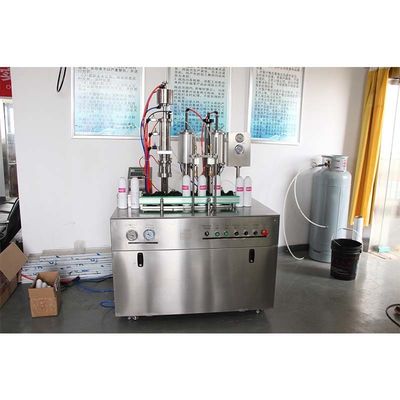

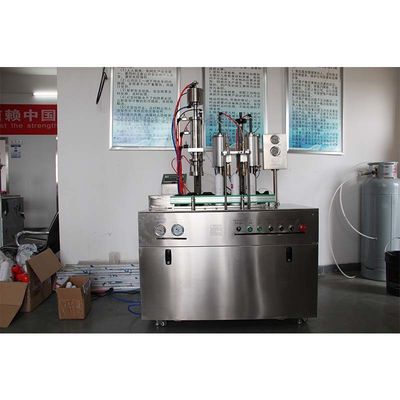

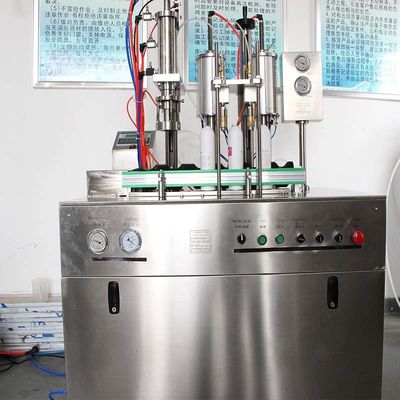

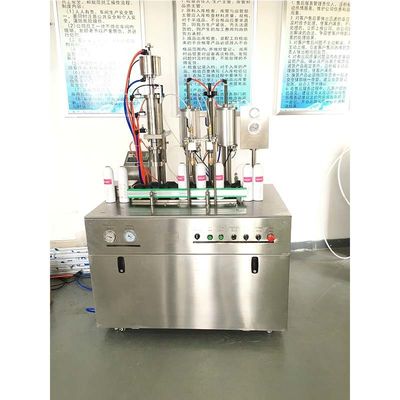

CJXH-1600DT is with microcomputer (PLC) programmable control, photoeltricity sensing. It consisted of one set vacuum crimping machine & two sets gas fillers. Using the screw bottles pusher instead of manual work. It has two working modes: manually intermittent filling and automatic intermittent filling, intermittent time is adjustable, very flexible and efficient. Manually inserting the valve before crimping.
Vacuum Crimping part: The sealing diameter and depth are easy to adjust, and sealing quality is reliable. With high sealing speed, reliable sealing quality, as well as simple operation, adjustment and maintenance requirement. The machine is specially used for
internal inflating sealing of global and universal 1-inch aerosol valve. Gas filling part: Gas filling machine has fully absorbed the advanced filling machine technology from the Swiss Pamasol Company to accelerate filling speed and accurate measuring. The maximum filling capacity is 500ML(liquid phase), the filling accuracy is ± 1% and filling speed is 600-1000 cans per hour.
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts, and operation parts.
3) High pressure double crank to control the die opening and closing.
4)The sealing machine adopts mechanical motion control, simple air channel, rational Structure, adjustment is convenient, the sealing head is made of high quality stainless Steel, anti-fatigue, resistant to shock, sealing quality is reliable.
5) The machine is pneumatic.
6) Good quality product selling even to Europe and USA.
Oxygen, compressed air, nitrogen, CO2 (Oil-free)
Production capacity | 4000-8000cans/day |
voltage | 220V, single phase , 50hz |
power | 100W |
Applicable can diameter | 35-80mm,need replace the diameter screw parts |
Applicable can Height | 60-350mm |
Vacuum degree | -0.05Mpa (tin can) ,-0.06Mpa(aluminum can) |
Max gas filling volume | Max 750ml (take water for example) Max 15000ml (take compressed air for example) |
Filling accuracy | ±0.03Mpa |
Max air consumption | 1.2 m³/min |
Applicable Gas | Oxygen, compressed air, nitrogen, CO2 (Oil-free) |
Dimension | 1500*900*1700mm |
All machines are guaranteed for one year free that we provide spare components except the wrong operation or damaged by people on purpose.
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
Our engineers will teach your staff to operate the machine during the period of installation and commissioning, and they will not leave until your staff can operate it properly and normally when it necessary.
1) When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent, please call us or tell us in your email so that we will regard your inquiry priority.
2) How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. We will provide you sample , as long as you afford the express freight.
3) What about the leading time for mass production?
Honestly, it depends on the order quantity. Normally, 15 days to 20 days after your deposit if no tooling needed
4) Why don't person reply to me?
A: Our person is 24hours on-line. When nobody reply you , please leave your requirements on e-mail or chat tool, we will reply you as soon as possible.
5)Can you guarantee your quality?
A:Of course. We are the manufacture factory. More important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
6)How do you determine the price?
A: We make the price according to our comprehensive costing. And our price will lower than the trade company because we are manufacture.You will get competitive price and better quality.
|
|
