16PIN OBD Cable OBDII J1962 Male Connector to Open Plug Wire OBD Diagnostic Extension Cable 150g Voltage 12V/24V 12V/24V

Brand Name:	AOT
Model Number:	AOT
Price:	CN¥36.32/pieces 1-499 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Model:

520, CALIBER

Year:

2003-2005, 1988-1992, 1995-1996, 2000-2005, 2006-2008

Type:

Other

Voltage:

12V/24V

Car Fitment:

BMW - Europe, Dodge - Europe

Power:

12W

Applicable Models:

All Car

Combination:

SDK

Warranty:

12 Months

Material:

ABS/PVC

Pins Plating:

Nickel/Golden

Pins Qty:

1-16p

Temperature:

-20~80℃

Pins:

9PINS

Wire Color:

Green

Cable Length:

L=1M

Weight:

150g

MOQ:

50pcs

Product Name:

J1939 Type2

Port:

Shenzhen

Supply Ability:

5000 Piece/Pieces per Month

Product Description

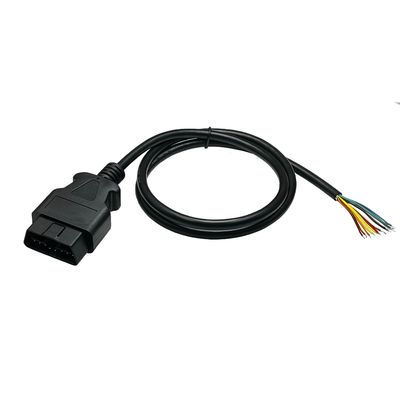

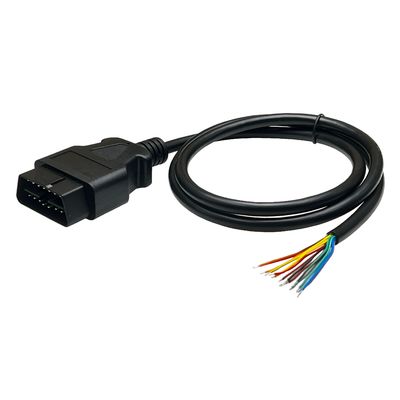

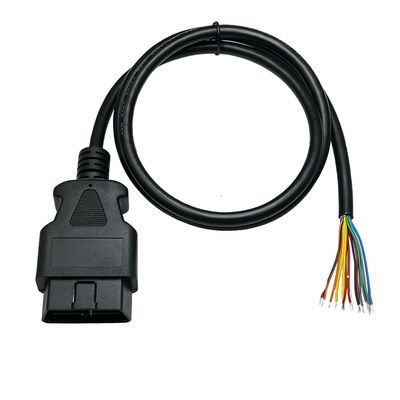

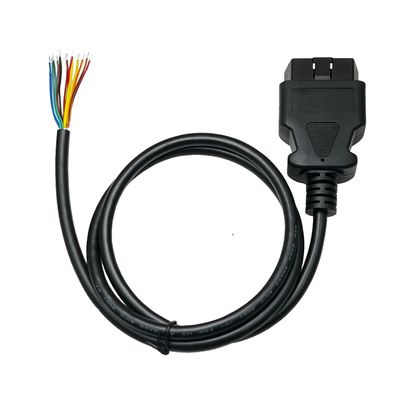

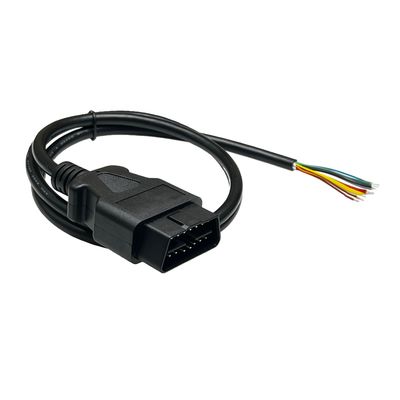

16PIN OBD Cable OBDII J1962 Male Connector to Open Plug Wire OBD Diagnostic Extension Cable

Product Description

16 Pin OBDII J1962 male connector pigtail cable open wire
All 16 Pins male connected with different colors wires for different applications
Cable Pigtail Length: 30cm / 12'',it can be used for 12V Car and 24V Truck
Great for DIY and homemade projects,DIY Mobley USB Adapter
One of pinout, 1-Brown ,2-Brown/white,3-Red,4-Red/white,5-Green,6-Green/white,7-Black,8-Black/white,9-Oranges,10-White,11-Yellow,12-Pink,13-Grey,14-Teal,15-Blue,16-Purple.Different device with different pinout, please check it before install it, thanks

Specification
OBD connectors	OBD2 male 12V/ 24V
Pins of OBD connector	Copper,nickel-plated or gold-plated
Overmold of OBD connector	slim design, right angle 90-degree, or standard straight
OBD2 connector	standard,16pin
Cable shape	around OD:7.0,8.0 or customized
Wire	26AWG, pure copper
Material of overmolded part	PVC
Pin assignment or pin out	customized
Cable length	customized
Pins or terminals	copper, nickel-plated or gold-plated
Contact Resistance	3 ohm max.
Insulation Resistance	5M ohm min.
Working Temperature	−25℃ ~ +85℃
Testing	100% open, short and mis-wire testing
Testing Voltage	DC300V 5M ohm/10ms
Warranty	1 year

16PIN OBD Cable OBDII J1962 Male Connector to Open Plug Wire OBD Diagnostic Extension Cable 150g Voltage 12V/24V 12V/24V 0
