| Brand Name: | AOT |
| Model Number: | AOT-2664 |
| MOQ: | 50 pieces |
| Price: | CN¥44.67-59.19/pieces |

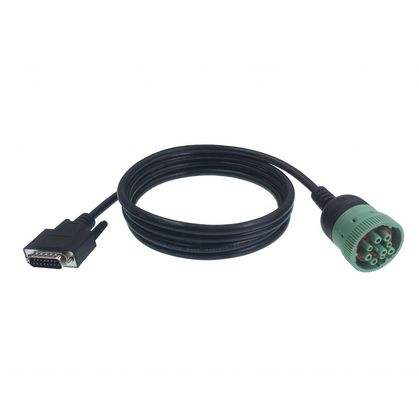

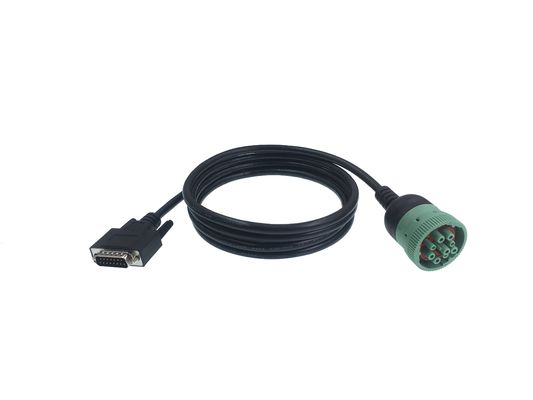

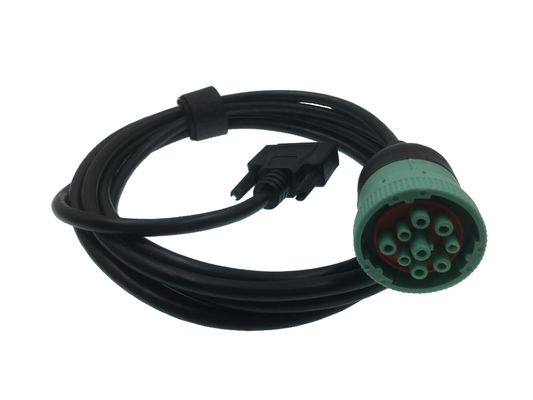

| Product type | J1939 truck cable | Voltage | 12V/24V |
| Color | Green | Dimension | Offer drawing |
| Normal Plug Material | PA66+GF(ABS+PC) | Certification | CE, RoHS, FCC |
| Power | 12V/24V | Warranty | 1 years |
| Working Temperature | -30~+80°C | Pinout | Custom |
| Cable length | 30cm/1ft/custom | Cable size | 22~26 awg |
| Model number | AOT-2664 | Weight | 150g |
| Samples | Available | MOQ | 1 PCS |
Specification:
- Auto j1939 male to obd2 female cable
- Cable: 26 AWG *16C Black jacket, or be costumed
- Cable length: 1ft, or be costumed
- Connected Pin 1:1, can meet all the vehicle communication standard
- Pin-out information, cable specification and plugs can be costumed
- Materials of connector and cable comply with UL and ROSH standards.
usage instruction:
1. take off the vehicle original OBD port.
2. fix our splitter cable vehicle OBD port into the car original OBD position.
3. connect your tracker into injected OBD2 female port of the splitter cable.
4. plug the car original OBD port to the injected OBD2 male port of the splitter cable.
| | |
| J1708 6PIN TO HBD15 | J1939 9PIN TO DB15 | J1939 9PIN TO DB9 |
| | |
| J1939 9PIN M & F TO DB15 | J1939 9PIN TO DB9 | J1939 9PIN TO DB15 |
| | |
| J1708 6PIN TO DB9 | J1939 9PIN M+ F TO HDB15 | J1939 M + F TO HDB15 |
Advantage :
Warranty :
|
|
