| Brand Name: | AOT |
| Model Number: | AOT |
| MOQ: | 10 pieces |
| Price: | CN¥50.84/pieces >=10 pieces |
| Product type | J1939 truck cable | Voltage | 12V/24V |
| Color | black | Dimension | Offer drawing |
| Normal Plug Material | PA66+GF(ABS+PC) | Certification | CE, RoHS, FCC |
| Power | 12V/24V | Warranty | 1 years |
| Working Temperature | -30~+80°C | Pinout | Custom |
| Cable length | 30cm/1ft/custom | Cable size | 22~26 awg |
| Model number | AOT | Weight | 800g |
| Samples | Available | MOQ | 1 PCS |
Specification:

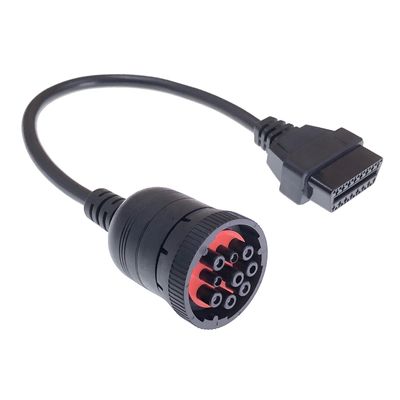

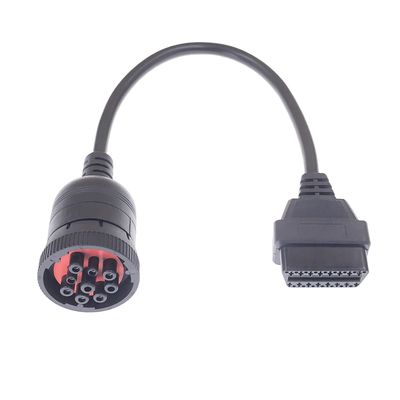

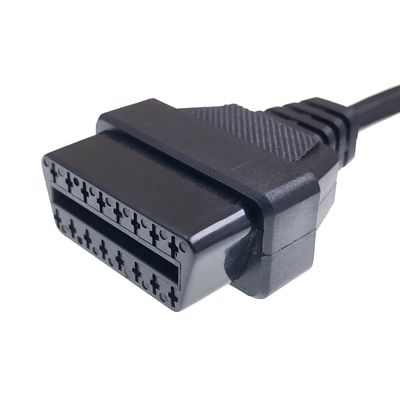

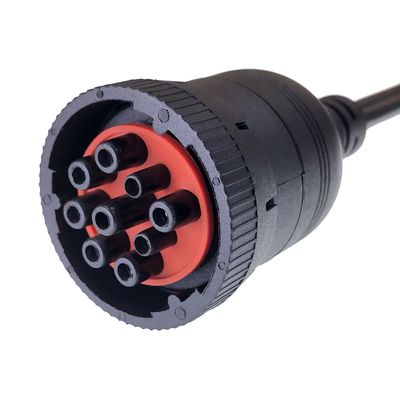

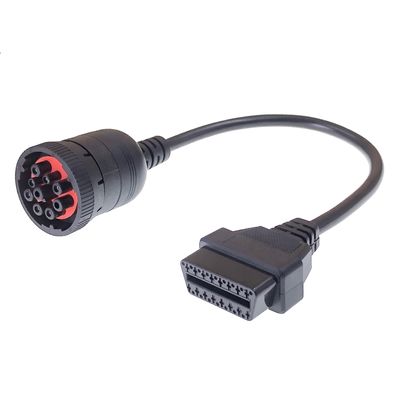

- Auto j1939 male to obd2 female cable
- Cable: 26 AWG *16C Black jacket, or be costumed
- Cable length: 1ft, or be costumed
- Connected Pin 1:1, can meet all the vehicle communication standard
- Pin-out information, cable specification and plugs can be costumed
- Materials of connector and cable comply with UL and ROSH standards.
usage instruction:
1. take off the vehicle original OBD port.
2. fix our splitter cable vehicle OBD port into the car original OBD position.
3. connect your tracker into injected OBD2 female port of the splitter cable.
4. plug the car original OBD port to the injected OBD2 male port of the splitter cable.
Remark:
1.Our company has passed ISO9001 quality assurance system certification and IATF international automobile quality management system certification.
2.We can make different overmolds for the ends of OBD2 OBDII female and male connectors. If you don’t like the overmolds at the ends of OBD2 OBDII female and male connectors as shown in the pictures or you would like to have your own overmold with your company’s logo or you have special application requirements, we can and we have the ability to make a new overmold for you with reasonable charge. Moreover, we can even make it for free as long as the order quantity is 5000 pcs or more.
| | |
| Right Angle Green Type2 J1939 9pin male to open wires | Right Angle Black type1 j1939 9pin male to DB9 female cable | Right Angle Black type1 j1939 9pin male to molex 16pin connector |
| | |
| Green type2 J1939 9pin male to 2x6 pin molex connector | Green type2 J1939 9pin male to 16pin obd2 female cable | Black type1 J1939 9pin male to 16pin obd2 female cable |
| | |
| Customized J1939 9PIN to housing and fuse. | OBD2 16PIN female to type2 J1939 9PIN male + J1708 6pin male cable | OBD2 16PIN female to type1 J1939 male +J1708 6pin male cable |
| | |
| Type2 Green J1939 9pin male to female + molex connector. | Type1 Black J1939 9pin male to female + molex connector. | Type1 Black J1939 M/F Adapter to DB9 female cable. |
Advantage :
Warranty :
- We are a professional manufacture in automotive area for 8 years
- Has advanced production line and experienced export team.
- Has our own tooling workshop.
- Mold design and develop are available .
- Strictly quality control, maximizing day output.
|
|
