32A AC Rated Current GBT Tester and Adapter for White Energy EV Charger

Name: 32A AC Rated Current GBT Tester and Adapter for White Energy EV Charger
Brand: Hubei Xinyanmei Supply Chain Management Co., Ltd.
SKU: QYZF-2-16
Price: Negotiable USD
Availability: InStock

Brand Name:	qiaoyi
Model Number:	QYZF-2-16
MOQ:	2 units
Price:	CN¥618.18/units 2-99 units

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Interface Standard:

Output Current:

Output Power:

None

Input Voltage:

380V

Product Name:

GBT Tester

Rated Current:

32A AC

Voltage:

380V AC

Certificate:

CE Approved

Material:

PC+Copper

Operation Voltage:

380V

Warranty:

1 Year

Type:

Gbt

Color:

White

Product Description

Recommend Products

Products Description

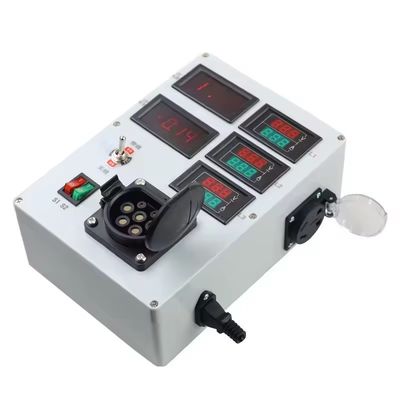

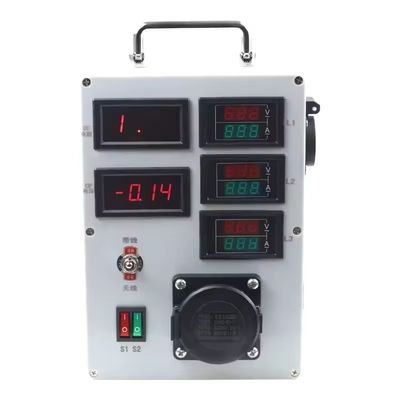

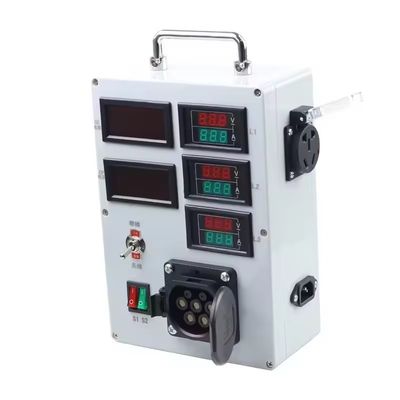

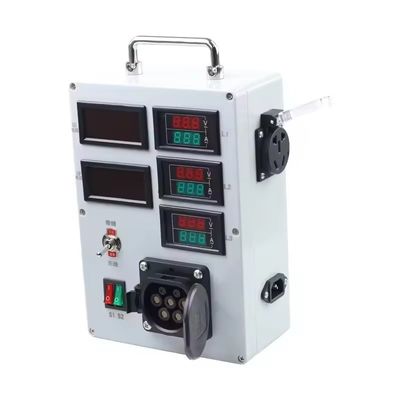

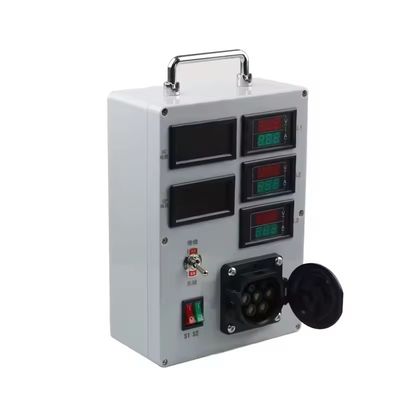

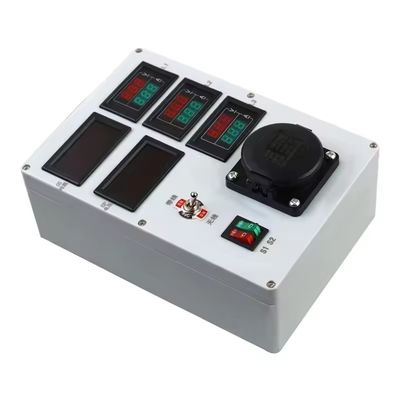

power 32A New energy EV charger tester

1. Insert the three plugs into the 220V power supply, and then the two display screens will light up;

2. Insert the charging gun into the front socket of the tester;

3. Turn on S1 switch to see the CP voltage change(indicator model does not have this function);

4. Turn on S2 switch to see the CP voltage change(indicator model does not have this function); After completing the above steps, the charging pile also starts to work and there is voltage output that can be in us See the data on the round display.

Resistance measurement of charging gun
current	CC resistance
24A	60Ω±5%
24A	220Ω±5%

Instructions for charging pile installer

1. When you insert the charging gun, the display screen does not light up;

2. Press S1, S2 switch, then the display light up,according to the table data, judgeCharging pile motherboard is not good;

3. Resistance is to measure the resistance inside the charging gun, when the charging gun button is pressed and when the charging gun button is not pressed The resistance value of the stun gun button is different. Also refer to the table;

4. Voltmeter and ammeter are used to measure whether the charging line is short circuit and there is no power output.
