| Brand Name: | AOTAI |
| Model Number: | AOT-4203 |
| MOQ: | 2 pieces |
| Price: | CN¥217.87/pieces >=2 pieces |

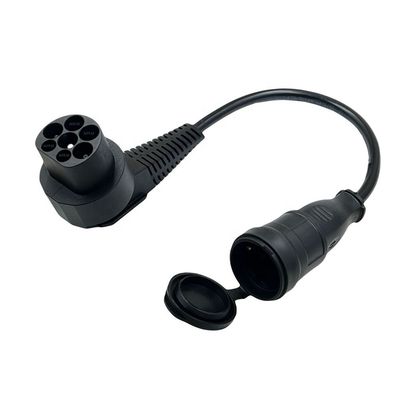

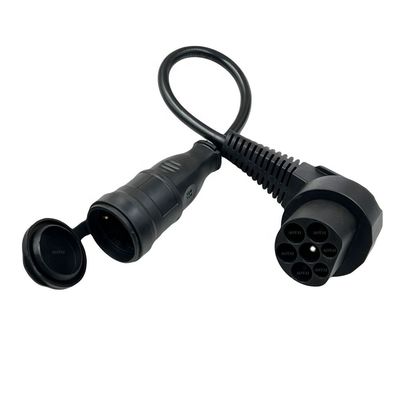

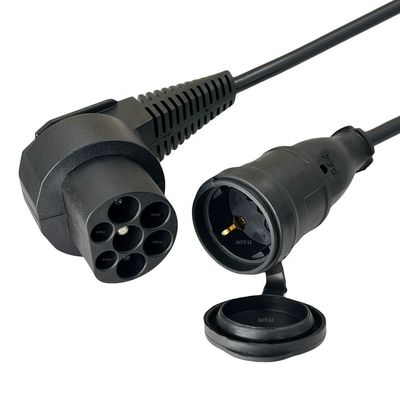

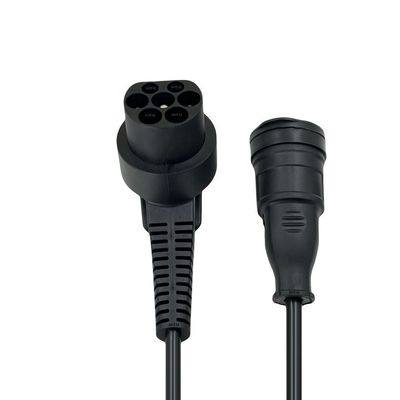

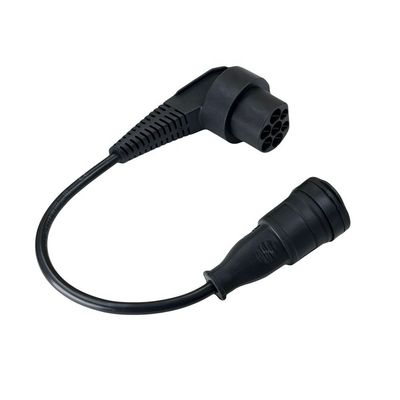

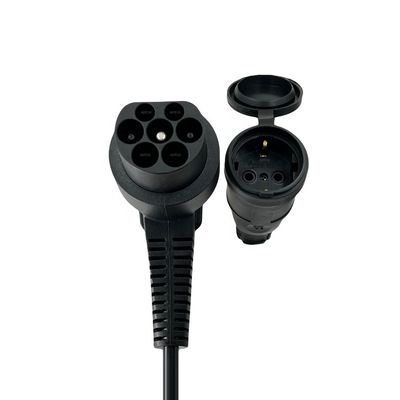

EV Adapter 16A Type 2 Plug to Schuko Socket Electrical Car Connector Adaptador Mennekes Type 2 - Schuko/ CE
Schuko to Type 2 adapter (IEC 62196). This adapter is suitable for any EV that uses a Schuko charging cable and wants to charge from a Type 2 charging station.
Electrical Performance
EV adapter for your electric vehicle, electric motorbike or scooter. This adapter helps to charge an EV with a Schuko connector (plug) to a Type 2 charging station. It is useful to use this adapter when you have a Schuko cable and you want to charge from a private or public charging station with Type 2 output. Also with this adapter, you can connect the car’s engine heating system in your vehicle using your EV charging station.
| Rated current | 16A |
| Operating voltage | 250V AC |
| Insulation resisitance | >1000 M Ω(DC500V) |
| Therminal temperature rise | <50K |
| Withstand voltage | 2000V/5S |
| Contact impedance | 0.5m ΩMax |
| Mechanical life | no-load plug in/pull out >10000 times |
| Insertion and Extration Force | 45N<F<80N |
| Shell material | Thermoplastic (Insulator inflammability UL94 V-0) |
| Contact Pin | Copper alloy, silver or nickel plating |
| Operating temperature | -30°C~+50°C |
|
|
| Brand Name: | AOTAI |
| Model Number: | AOT-4203 |
| MOQ: | 2 pieces |
| Price: | CN¥217.87/pieces >=2 pieces |
| Packaging Details: | Standard |
EV Adapter 16A Type 2 Plug to Schuko Socket Electrical Car Connector Adaptador Mennekes Type 2 - Schuko/ CE
Schuko to Type 2 adapter (IEC 62196). This adapter is suitable for any EV that uses a Schuko charging cable and wants to charge from a Type 2 charging station.
Electrical Performance
EV adapter for your electric vehicle, electric motorbike or scooter. This adapter helps to charge an EV with a Schuko connector (plug) to a Type 2 charging station. It is useful to use this adapter when you have a Schuko cable and you want to charge from a private or public charging station with Type 2 output. Also with this adapter, you can connect the car’s engine heating system in your vehicle using your EV charging station.
| Rated current | 16A |
| Operating voltage | 250V AC |
| Insulation resisitance | >1000 M Ω(DC500V) |
| Therminal temperature rise | <50K |
| Withstand voltage | 2000V/5S |
| Contact impedance | 0.5m ΩMax |
| Mechanical life | no-load plug in/pull out >10000 times |
| Insertion and Extration Force | 45N<F<80N |
| Shell material | Thermoplastic (Insulator inflammability UL94 V-0) |
| Contact Pin | Copper alloy, silver or nickel plating |
| Operating temperature | -30°C~+50°C |
