| Brand Name: | e-mingze |
| Model Number: | MZT2-080 |
| MOQ: | 2 pieces |
| Price: | CN¥570.18/pieces 2-49 pieces |
| Protection rank | IP55(charger)IP66(box) |
| Fire retardant level | UL94V-0 |

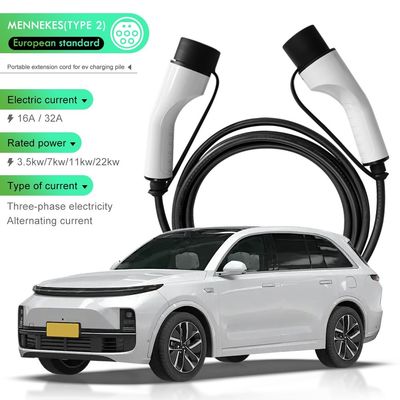

| Rated Current | 16A/32A |
| Insulation resistance | >100M ohm (Dc 500V) |
| Terminal temperature rise | <50K |
| Withstand voltage | 2000V |
| Contact resistance | ≤0.05 MQ |
| Coupled insertion force | >45N>80N |
| Operating temperature | -35'℃ to 50°C |
| Meet the standard | type2 to type2 |
| Charging cable | TPU |
| Mechanical life | No-load plug in/pull out> 10000 times |
| Impact resistance | 1m drop or 2 Ton vehicle run over pressure |

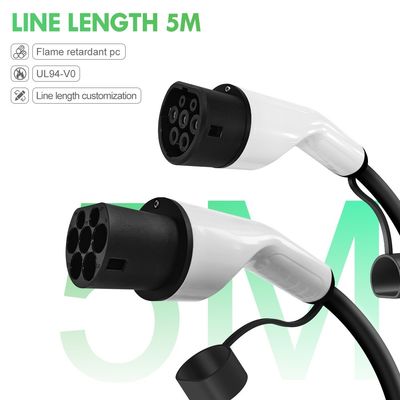

| Length | 5(19.7in)/10(39.4in)/15(59.0in)/20(78.7in),customizable |
| Product feature | Plug and play, you can also make an appointment to charge,you can record the charging time and power consumption |
|
|
