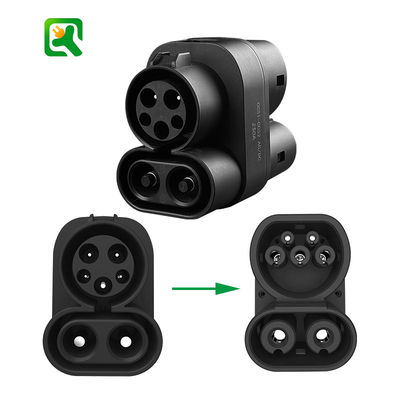

Efficiently Charge Your Electric Vehicle with CCS1 to CCS2 AC EV Adaptor Performance 250A Output Current

Name: Efficiently Charge Your Electric Vehicle with CCS1 to CCS2 AC EV Adaptor Performance 250A Output Current
Brand: Hubei Xinyanmei Supply Chain Management Co., Ltd.
SKU: QYS1S2A/DC-250
Price: Negotiable USD
Availability: InStock

Brand Name:	Qiaoyi
Model Number:	QYS1S2A/DC-250
Price:	CN¥545.46/bags 1-99 bags

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Purpose:

For Retrofit/upgrade

Condition:

New

Interface Standard:

Ccs1 To Ccs2

Output Current:

250A

Output Power:

100kw

Input Voltage:

1000

Type:

Ccs1 To Ccs2

Rated Current:

250A DC

Output Voltage:

AC/DC110-700V

Warranty:

1 Year

Certificate:

MOQ:

1 Piece

Color:

Black

Usage:

Charge

Product Description

Recommend Products

shop link：https://chargepille.en.alibaba.com/index.html?spm=a2700.shop_cp.88.12.49482a29tWndXJ

Achieve European CCS2 new energy vehicles in the Americas CCS1 charging pile charging use, can be compatible with DC and AC charging gun

The inner copper silver-plated terminal has better electrical conductivity, and the shell is made of flame retardant material,
which can effectively prevent combustion. At the same time, it has IP54 level waterproof and can also charge safely in rainy days

Automatic AC/DC switchover

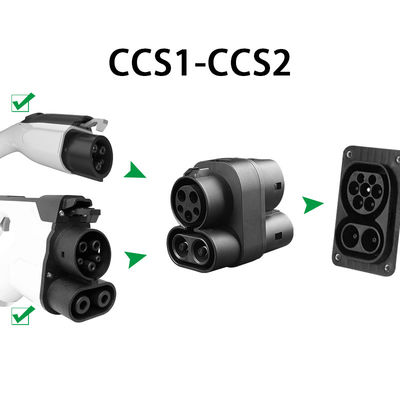

CCS2/TYPE2 Fast charging adapter for cars. Compatible with DC CCS1 and AC type1/j1772 charging guns

There is an inductive button at one end of the charging gun that links to the US gauge When the AC charging gun is inserted, the button will not be touched, and the AC charging will be default Plugging in the DC charging gun will touch the button, which will automatically switch to DC charging No need to worry about voltage

Built-in temperature protection
Real-time detection of the temperature during charging, when the temperature exceeds 85℃ will stop charging until the temperature decreases below 65℃ to resume charging, to avoid some security risks during charging
Note: After the temperature protection, the car needs to accept the charging signal again before starting

the working environment temperature can reach between -30℃ and 50℃, and the waterproof level is IP54

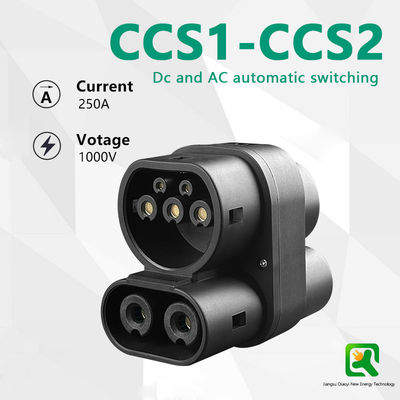

The AC can reach 32A. DC can go up to 250A. The maximum AC voltage is 250V and the maximum DC voltage is 1000V

MAIN PARAMETERS Rated current: 250A DC Rated voltage: 1000V DC insulation resistance:>100MΩ Contact impedancece:0.5 m ΩMax Fireproof grade of rubber shell:UL94V-0 Mechanical life: unloaded plugged:>10000 Waterproof grade: lP54(mating) Plastic shell: thermoplastic plastic Conductor: copper alloy, silver plated surface Working environmenttemperaturelated:-30°C- +50°C Terminal temperature riseture: <50K Insertion and Extraction Force: <100N

Certifications

https://www.alibaba.com/product-detail/Portable-Fast-DC-EV-Charger-Adapter_1601267204660.html?spm=a2700.shop_pl.41413.3.11c57121VO5ijV

https://www.alibaba.com/product-detail/Professional-Portable-EV-Charging-adapter-New_1601266870143.html?spm=a2700.shop_plser.41413.51.4110324f82vxkU

https://www.alibaba.com/product-detail/7KW-220V-32A-EV-Charger-Adapter_1601255252800.html?spm=a2700.shop_plser.41413.91.4110324f82vxkU

Product Paramenters

Product details
Place of Origin	Jiangsu,China
Brand name	Qiaoyi

Company Profile

About us

Jiangsu Qiaoyi New Energy Technology Co.Ltd. was a professional manufacturer. Qiaoyi is a company that provides customized solutions for home charging piles, portable ev charging and so on. It has more than 30 product patents, covering the whole product system of wall-mounted charging piles, portable charging piles, charging guns, charging pile accessories and charging adapters. Including standard products and customized products, it has obtained authoritative certifications such as CE, FCC and system certification.
We sincerely welcome customers from all over the world to visit and cooperate with us.

FAQ

Q1. Are you a factory?
A: We are a professional manufacturer for several years.Covering the whole product system of home charging piles.

Q2. Do you test all your products before delivery?
A: Yes, we have video inspection and testing before delivery.
Q3: What about your warranty for EV Charger?
A: Generally 1 year
Q4: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and shipping cost.
