| Brand Name: | e-mingze |
| Model Number: | MZDC-07010946 |
| MOQ: | 2 pieces |
| Price: | CN¥10,058.27/pieces 2-99 pieces |
| Specification Sheet | |

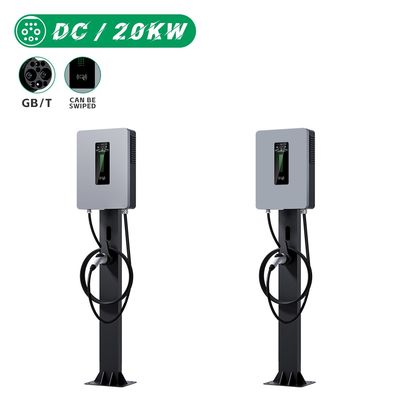

| Column type DC 20KW GBT can be swiped charger Basic Parameters | |
| Product name | MZ-WG001 |
| Charging Parameters | |
| Rated Power Current | DC 20KW/50A |
| Car plug: | GBT |
| Input plug: | Customizable |
| Operating Voltage | 230Vac+15% |
| Output Current(max) | 50A(max) |
| Operating Frequency | 50/60Hz |
| Cooling Method | Air Cooling |
| Output Voltage Range | ‘+200Vdc~+600Vdc(Adjustable) |
| OvertemperatureProtection | 85℃(protection)65C(resumption) |
| Lightning Protection | Yes |
| Installation Method | Portability |
| Input OvervoltageProtection | ≥270V |
| Input UndervoltageProtection | ≤85V |

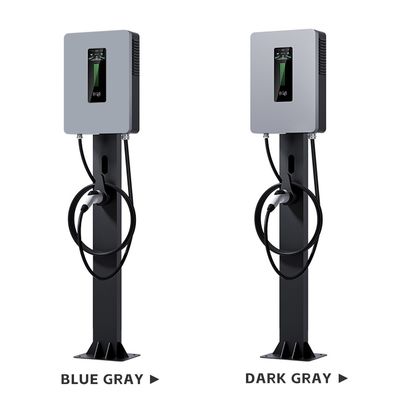

| Colour | BLUE GRAY & DARK GRAY |
| Certificate Compliance | CE,EN/IEC61851-1:2017, EN/IEC61851-23:2014 |
| HCI | Indicator + 1.3 Inch Display |
| Shell Protection Grade | IP54 |
| Security Protection | CP abnormal protection, leakage protection, over-current protection, over-voltage protection, under-voltage protection, plug end and over-temperature protection in the box |
| Machine parameters | |

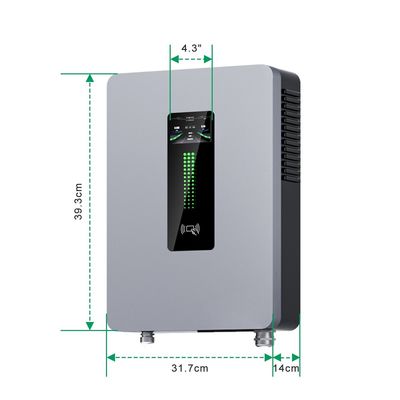

| size L*W*H/mm | 730*480*350 |
| Weight/kG | 38KG |

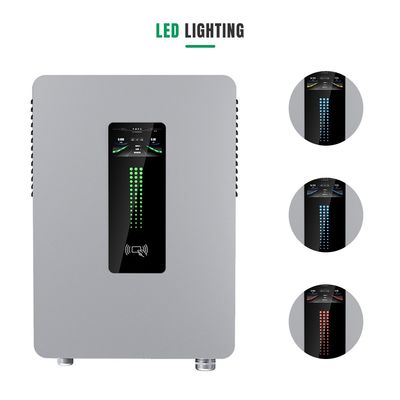

| LED Indicator | Green/Yellow/Red |
| Screen Size | 4.3"Screen |
| StorageTemperature | ‘-40℃~+60℃C |
| OperatingTemperature | ‘-25℃~+50℃ |
| Line length | 5(19.7in)/10(39.4in)/15(59.0in)/20(78.7in),customizable |
| Product Characteristics | |
| 1. Swipe card charging, prevent theft of charge 2. Support most of the electric and hybrid car charging on themarket 3. High quality pure copper COC certified cable 4. Support vehicle charging lock gun function 5. Full stop. | |
1. Are you a factory or trading company?
We are a factory. Located in Guangzhou city, Guangdong Province. Factory established on 2008.
|
|
