CE Certification 7kW DC Fast Charging Station with GB/T Connectors and 220Vac±10% Input Voltage

Name: CE Certification 7kW DC Fast Charging Station with GB/T Connectors and 220Vac±10% Input Voltage
Brand: Hubei Xinyanmei Supply Chain Management Co., Ltd.
SKU: MC07750HG
Price: Negotiable USD
Availability: InStock

Brand Name:	MAX POWER
Model Number:	MC07750HG
Price:	CN¥2,894.54/sets >=1 sets

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Interface Standard:

GB/T

Output Power:

7kW, 7KW

Product Name:

7kw Ev Charger

Input Voltage:

220Vac±10%

Output Voltage:

200-750VDC

Output Current:

200-750VDC

Warranty:

12 Months

Connectors:

GB/T

Standard:

GB,EN 61851;EN61000;JEVS;UL2202,2231,2231-2 Ect

Usage:

Charge EV Car

Packing:

Box

Packaging Details:

Packing box

Product Description

Product Description

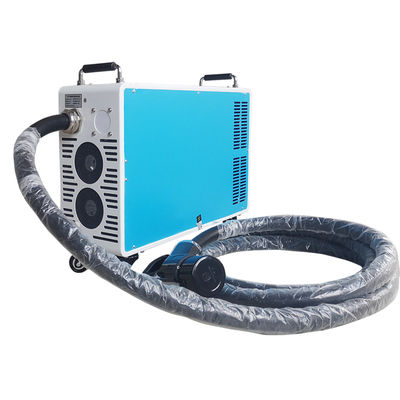

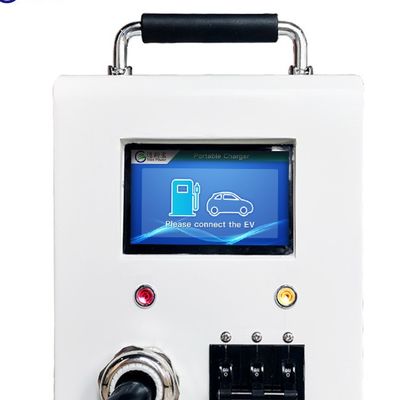

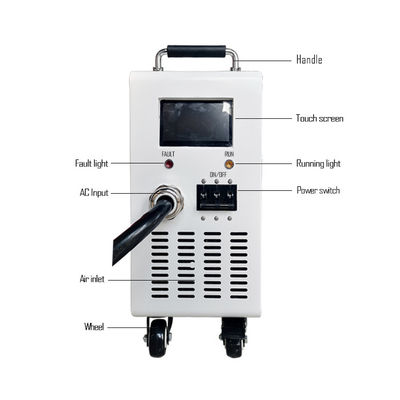

7kw Portable Charger

◆ MAX POWER 7kw portable charger is easy to carry, the input voltage is 220V from home plug grid, can charge the EV at any time,
anywhere freely.
◆ By center control module, power module, lightning protection unit, Intelligent and friendly interface.
◆ Using high-performance charging modules, wide voltage output range from 200-750Vdc
◆ Standard, touch screen, mobile, wall - mounted, multiple design styles to meet your needs.
◆Small, light, No restraints.
◆High efficiency:≥95%

Production Parameters
Model			7KW
AC Input	Input Rating	220Vac±10%
		AC Input Connection	L2+L3+PE (NEMA,JPS)
		Max. Input Current	32A
		Frequency	50 /60 Hz
		Power Factor	>0.99@full load
		Efficiency	95%
DC Output	Output Voltage Range	200-750Vdc
		Max. Output Power	7KW
		Max. Output Current	20A
User Interface	TFT-LCD Touch Panel	No
		Push Buttons	No
		Interface	USB
Packing	Dimension	410×149×250mm
Packing		Weight	20KG
Environmental	Operating Temperature	-40~85℃,25℃(TYPE)
		Humidity	5%-90% RH, non-condens,ng
		Altitude	2000m
		IP Level	IP43
Mechanical	Cable Length	5M (CHAdeMO) , 5M (CCS), 5M(GB/T) Customized acceptable
Mechanical		Regulation	EN61851-1
Regulation	Certification	CE , ROHS
Regulation		Charging protocol	CHAdeMO 2.0 / DIN 70121/ISD1S118/IEC618Sl-23,IEC618Sl-24

Recommanded For You

Company Profie

Please feel free and click here for more information.

Exhibition

Packaging and shipping

Customer Reviews

Please feel free and click here for more information.

FAQ

Q1.Are you a factory or trading company?
A: We are a professional manufacturer of new and sustainable energy applications for over 18 years.
Q2.What is the warranty?
A: 12 months. In this period, we will supply technical support and replace the new parts by free,customers are in charge of
delivery.
Q3. What is your terms of packing?
A: Generally, we pack our goods in brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q4. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. What is your terms of trade?
A: EXW, FOB, CFR, CIF, DAP,DDU,DDP
Q6. How about your delivery time?
A: Generally, it will take 3 to 7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q8. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q9. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q10.What’s the difference between Movable Charger and Wallbox Charger?
A: In addition to the obvious appearance difference, the main protection level is different: wallbox charger protection level is IP54, available outdoors;And the Movable Charger protection level is IP43, rainy days and other weather can not be used outdoors.
