CCS GB/T Type2 Portable DC 7KW EV Charger for Electric Vehicles Charging Solutions Provider

Name: CCS GB/T Type2 Portable DC 7KW EV Charger for Electric Vehicles Charging Solutions Provider
Brand: Hubei Xinyanmei Supply Chain Management Co., Ltd.
SKU: MC EV Charger
Price: Negotiable USD
Availability: InStock

Brand Name:	MAX POWER
Model Number:	MC EV Charger
Price:	CN¥17,090.85/pieces 1-1 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Interface Standard:

CCS

Output Current:

Output Power:

7KW

Input Voltage:

90-265V

Product Name:

EV Portable Charger

Input Voltage:

90-265VAC

Output Voltage:

200-750VDC

Output Current:

20A

Connector:

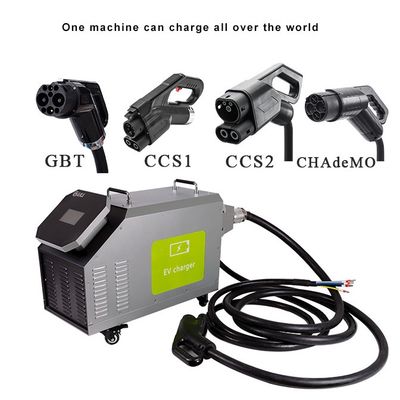

Optional CCS ChadeMo GB/T Type2

IP Level:

IP43

Warranty:

12 Months

Packaging Details:

Plywood boxes

Product Description

Guangzhou Max Power New Energy Technology Co., Ltd. is a high-tech company which has been invested by the fund supported by Jiangxi provincial government. It focuses on the R&D for the core parts such as on/off board charger & DCDC for new energy vehicle(EV, PHEV etc.). The core team members have rich working experience in Valeo with background of overseas education. The products we developed (OFBC,OBC & DCDC) have excellent performance and dominant position in the market.

Product Description

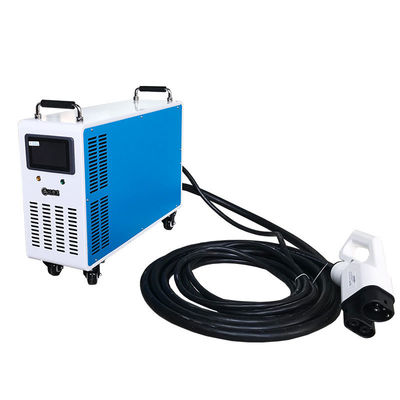

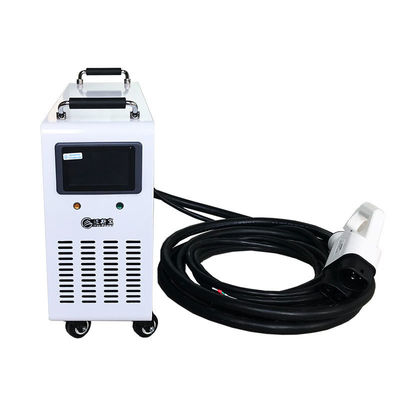

7kw portable CCS Standard DC Fast EV Charger

◆ The 7KW portable charger produced by our company, with input voltage of 90-265Vac, voice navigation, easy to use, rated output power of 7KW with Max current 20A. This product has the corresponding rainproof cover, which is specially customized for this type of charger. If necessary, you can contact with the customer service.
◆By monitoring module, power module, lightning protection unit, intelligent and friendly interface, etc.
◆High performance charging module, super wide charging range, high efficiency.
◆ 4.3 inch display screen, the display screen will prompt the operation steps, intuitive and simple, beautiful and generous.
◆ Can also be customized production according to vehicle BMS parameters.
◆High efficiency:≥95%

Production parameters

Model			MC07750DE-7KW
AC Input	Input Voltage	90-265Vac
		AC Input Connection	L2+L3+PE(NEMA,JPS),L+N+PE
		Max. Input Current	32A
		Frequency	50 /60 Hz
		Power Factor	>0.99@full load
		Efficiency	95%
DC Out put	Output Voltage Range	200-750Vdc
		Max, Output Power	7KW
		Max. Output Current	20A
User Interface	OCPP 1.6	Yes
		Limit power/current	Yes
		Interface	USB
Packing	Dimension	570×190×350mm
Packing		Weight	50KG
Environmental	Operating Temperature	-40~85℃,25℃(TYPE)
		Humidity	5%-90% RH, non-condens,ng
		Altitude	2000m
		IP Level	IP43
Mechanical	Cable Length	5M (CHAdeMO) , 5M (CCS), 5M(GB/T) Customized acceptable
Mechanical		Regulation	EN61851-1
Regulation	Certification	CE , ROHS
Regulation		Charging protocol	CHAdeMO 2.0 / DIN 70121/ISD1S118/IEC618Sl-23,IEC618Sl-24

Recommanded For You

Product Categories

Our Advantages

Company Profie

FAQ

Q1.Are you a factory or trading company?
A: We are a professional manufacturer of new and sustainable energy applications for over 18 years.
Q2.What is the warranty?
A: 12 months. In this period, we will supply technical support and replace the new parts by free,customers are in charge of
delivery.
Q3. What is your terms of packing?
A: Generally, we pack our goods in brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q4. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. What is your terms of trade?
A: EXW, FOB, CFR, CIF, DAP,DDU,DDP
Q6. How about your delivery time?
A: Generally, it will take 3 to 7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q8. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q9. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q10.What’s the difference between Movable Charger and Wallbox Charger?
A: In addition to the obvious appearance difference, the main protection level is different: wallbox charger protection level is IP54, available outdoors;And the Movable Charger protection level is IP43, rainy days and other weather can not be used outdoors.
