OCPP JSON 1.6 CCS 60A 20KW DC Ev Charger Movable ev Fast Charger Ev Portable Charger Interface Standard CCS

Name: OCPP JSON 1.6 CCS 60A 20KW DC Ev Charger Movable ev Fast Charger Ev Portable Charger Interface Standard CCS
Brand: Hubei Xinyanmei Supply Chain Management Co., Ltd.
SKU: MC20750
Price: Negotiable USD
Availability: InStock

Brand Name:	MAX POWER
Model Number:	MC20750
Price:	CN¥16,727.21/pieces 1-1 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Interface Standard:

CCS

Output Current:

DC, 60A

Output Power:

20KW, 20KW

Input Voltage:

260-475V

Product Name:

Portable Dc Ev Charger

Input Voltage:

260-475Vac

Output Voltage:

200-750Vdc

Connectors:

Optional CCS,ChadeMo,GB/T

IP Level:

IP43

Warranty:

12 Months

Packaging Details:

Plywood boxes

Product Description

Products Description

Guangzhou Max Power New Energy Technology Co., Ltd. is a high-tech company which has been invested by the fund supported by Jiangxi provincial government. It focuses on the R&D for the core parts such as on/off board charger & DCDC for new energy vehicle(EV, PHEV etc.). The core team members have rich working experience in Valeo with background of overseas education. The products we developed (OFBC,OBC & DCDC) have excellent performance and dominant position in the market.

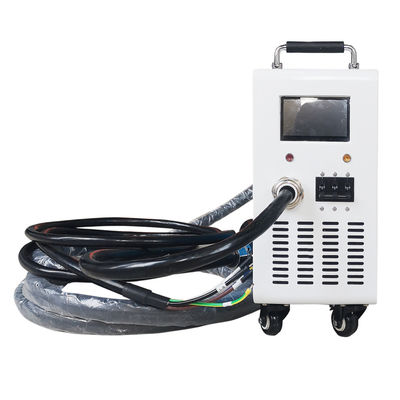

20kw portable CCS Standard DC Fast ev charger

◆ The 20KW portable charger produced by our company, with input voltage of 260-475Vac, voice navigation, easy to use, rated output power of 20KW, 60A. This product has the corresponding rainproof cover, which is specially customized for this type of charger. If necessary, you can contact with the customer service.
◆By monitoring module, power module, lightning protection unit, intelligent and friendly interface, etc.
◆High performance charging module, super wide charging range, high efficiency.

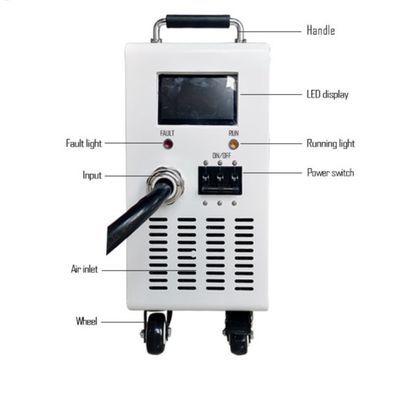

◆ 4.3 inch display screen, the display screen will prompt the operation steps, intuitive and simple, beautiful and generous.
◆ Can also be customized production according to vehicle BMS parameters.Support OCPP 1.6
◆High efficiency:≥95%

Production parameters

Model			MC20750HDE 20KW
AC Input	Input Voltage	260-475Vac
		AC Input Connection	3P + N +PE, Wye connection
		Max. Input Current	32A
		Frequency	50 /60 Hz
		Power Factor	>0.99@full load
		Efficiency	95%
DC Out put	Output Voltage Range	200-750Vdc
		Max, Output Power	20KW
		33/50Max. Output Current	33/50A
User Interface	OCPP JSON 1.6	Support
		Limit Power/Current	Yes
		Interface	USB
Product specification	Dimension	490×158×386mm
Product specification		Weight	28KG
Environmental	Operating Temperature	-40~85℃,25℃(TYPE)
		Humidity	5%-90% RH, non-condens,ng
		Altitude	2000m
		IP Level	IP43
Mechanical	Cable Length	5M (CHAdeMO) , 5M (CCS), 5M(GB/T) Customized acceptable
Mechanical		Regulation	EN61851-1
Regulation	Certification	CE , ROHS
Regulation		Charging protocol	CHAdeMO 2.0 / DIN 70121/ISD1S118/IEC618Sl-23,IEC618Sl-24

Please feel free and click here for more information.

Recommanded For You

Company Profie

Please feel free and click here for more information.

Exhibition

Packaging and shipping

Customer Reviews

Please feel free and click here for more information.

FAQ

Q1.Are you a factory or trading company?
A: We are a professional manufacturer of new and sustainable energy applications for over 18 years.
Q2.What is the warranty?
A: 12 months. In this period, we will supply technical support and replace the new parts by free,customers are in charge of
delivery.
Q3. What is your terms of packing?
A: Generally, we pack our goods in brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q4. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. What is your terms of trade?
A: EXW, FOB, CFR, CIF, DAP,DDU,DDP
Q6. How about your delivery time?
A: Generally, it will take 3 to 7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q8. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q9. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q10.What’s the difference between Movable Charger and Wallbox Charger?
A: In addition to the obvious appearance difference, the main protection level is different: wallbox charger protection level is IP54, available outdoors;And the Movable Charger protection level is IP43, rainy days and other weather can not be used outdoors.
