15KW Ocpp Commercial Solar Fast EV Charger Wallbox Charging Station Manufactured by Direct with 30KG Output Power CCS

Name: 15KW Ocpp Commercial Solar Fast EV Charger Wallbox Charging Station Manufactured by Direct with 30KG Output Power CCS
Brand: Hubei Xinyanmei Supply Chain Management Co., Ltd.
SKU: SC15750
Price: Negotiable USD
Availability: InStock

Brand Name:	Max Power
Model Number:	SC15750
Price:	CN¥16,436.31/pieces 1-2 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Interface Standard:

CCS

Output Current:

DC, 33A

Output Power:

22kW, 15KW

Input Voltage:

260-475V

Product Name:

15KW DC EV Charger

Output Voltage:

200-750V

Connectors:

Optional CCS,ChadeMo,GB/T

IP Level:

IP54

Weight:

30KG

Warranty:

12 Months

Port:

Guangzhou

Packaging Details:

Plywood boxes

Supply Ability:

3000 Set/Sets per Month

Product Description

Guangzhou Max Power New Energy Technology Co., Ltd. is a high-tech company which has been invested by the fund supported by Jiangxi provincial government. It focuses on the R&D for the core parts such as on/off board charger & DCDC for new energy vehicle(EV, PHEV etc.). The core team members have rich working experience in Valeo with background of overseas education. The products we developed (OFBC,OBC & DCDC) have excellent performance and dominant position in the market.

Product Description

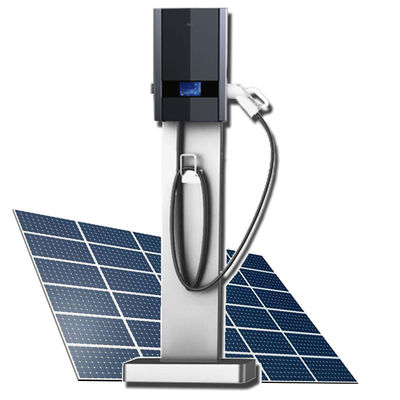

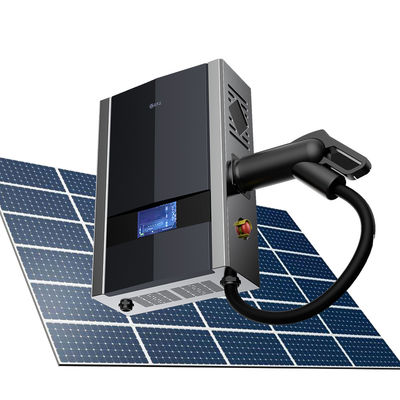

15KW WALLBOX CHARGER:

♦ The 15kw charger produced by our company, with input voltage of 380V, voice navigation, easy to use, rated output power of 15KW, waterproof and dustproof function, multiple safety protection.
♦ By monitoring module, power module, lightning protection unit, intelligent and friendly interface, etc.
♦ High performance charging module, super wide charging range, high efficiency.
♦ Small size, light weight, convenient and efficient service.
♦ Can also be customized production according to vehicle BMS parameters.
♦ High efficiency:≥95%

OVERVIEW:

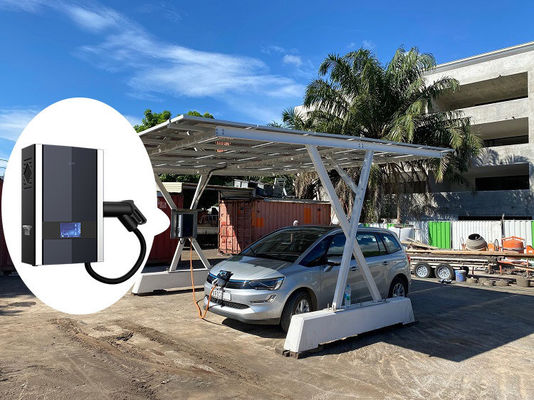

This charger is great for mounting in your garage, business, racing, or RV park. It is very useful to have as a backup
charger for use on the race track, in a tow truck, in an SUV, trailer or anywhere you need power. This affordable 7-40 KW DCFC is perfect to install for charging electric vehicle at maximum speed as well as many EV cars. take on road trips through rural areas with RV or industrial areas being the main power sources for EV travelers. This unit will greatly speed up you or your customers charging.

FEATURES:

♦ Features Small size and light weight.
♦ 4.3-inch touchscreen display.
♦ Scan or swipe the card to charge.
♦ Support remote charging monitoring and control of mobile phones.

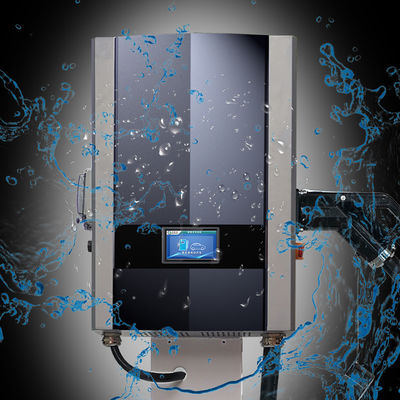

♦ IP54 protection level.
♦ Fashion and high-end modeling.

Note:All product outward appearance, the color take the material object as, the picture only supply the reference

Production Parameters
Model			15KW
AC Input	Input Rating	380Vac±10%
		AC Input Connection	3P + N +PE, Wye connection
		Max. Input Current	30A
		Frequency	50 /60 Hz
		Power Factor	>0.99@full load
		Efficiency	95%
DC Output	Output Voltage Range	200-750Vdc
		Max. Output Power	15KW
		Max. Output Current	38A
User Interface	TFT-LCD Touch Panel	Yes(swiping card without TFT-LCD Touch Panel)
		Push Buttons	Yes
		Interface	Yes
Packing	Dimension	W:548 ×378× 160mm U:1500×520× 250mm
Packing		Weight	Wall:30KG Upright:35KG
Environmental	Operating Temperature	-40~85℃,25℃(TYPE)
		Humidity	5%-90% RH, non-condens,ng
		Altitude	2000m
		IP Level	IP54
Mechanical	Cable Length	5M (CHAdeMO) , 5M (CCS), 5M(GB/T) Customized acceptable
Mechanical		Regulation	EN61851-1
Regulation	Certification	CE , ROHS
Regulation		Charging protocol	CHAdeMO 2.0 / DIN 70121/ISD1S118/IEC618Sl-23,IEC618Sl-24

FAQ

Q1.Are you a factory or trading company?
A: We are a professional manufacturer of new and sustainable energy applications for over 18 years.
Q2.What is the warranty?
A: 12 months. In this period, we will supply technical support and replace the new parts by free,customers are in charge of
delivery.
Q3. What is your terms of packing?
A: Generally, we pack our goods in brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q4. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. What is your terms of trade?
A: EXW, FOB, CFR, CIF, DAP,DDU,DDP
Q6. How about your delivery time?
A: Generally, it will take 3 to 7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q8. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q9. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q10.What’s the difference between Movable Charger and Wallbox Charger?
A: In addition to the obvious appearance difference, the main protection level is different: wallbox charger protection level is IP54, available outdoors;And the Movable Charger protection level is IP43, rainy days and other weather can not be used outdoors.
