| Brand Name: | MAX POWER |
| Model Number: | SC07750HE |
| Price: | CN¥11,490.87/sets 1-1 sets |
Guangzhou Max Power New Energy Technology Co., Ltd. is a high-tech company which has been invested by the fund supported by Jiangxi provincial government. It focuses on the R&D for the core parts such as on/off board charger & DCDC for new energy vehicle(EV, PHEV etc.). The core team members have rich working experience in Valeo with background of overseas education. The products we developed (OFBC,OBC & DCDC) have excellent performance and dominant position in the market.

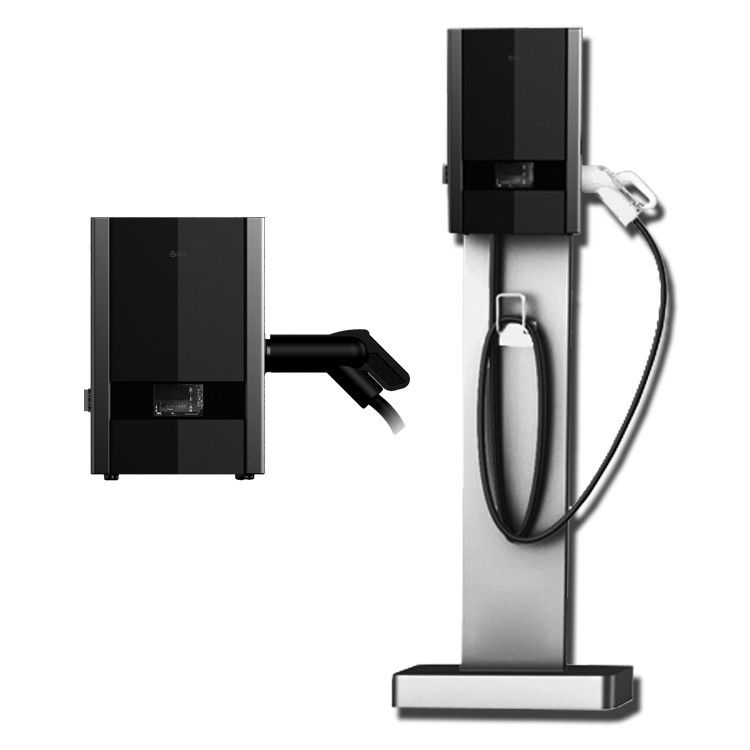

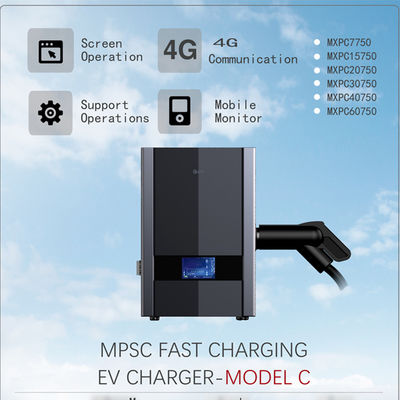

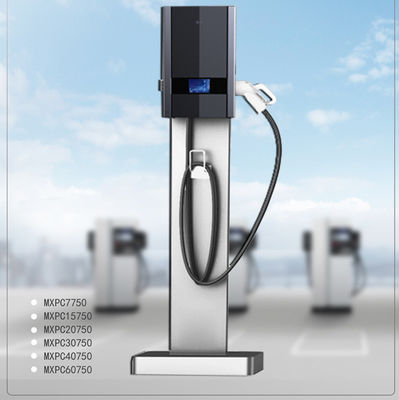

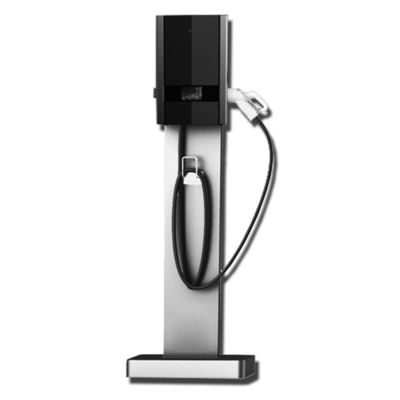

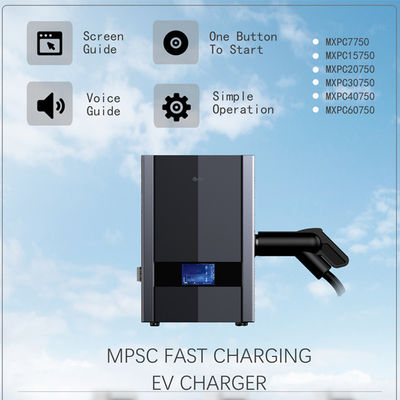

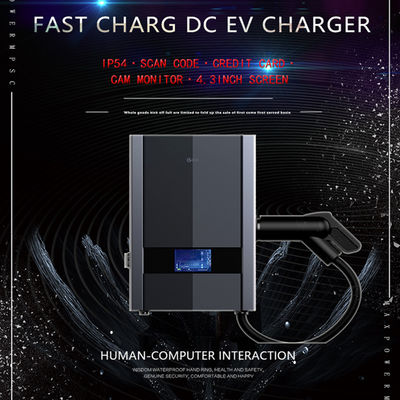

Ev car charger suppliers IP54 7KW charging station for electric carcharging station for electric car
7KW PORTABLE CHARGER:
♦ MAX POWER 7kw charger is easy to carry, the input voltage is 220V from home plug grid, can charge the EV at any time,
♦ anywhere freely.
♦ By center control module, power module, lightning protection unit, Intelligent and friendly interface.
♦ Using high-performance charging modules, wide voltage output range from 200-750Vdc
♦ Standard, touch screen, mobile, wall - mounted, multiple design styles to meet your needs.
♦ Small, light, No restraints.
♦ High efficiency:≥95%
OVERVIEW:
This portable charger is great for mounting in your garage, business, racing, or RV park. It is very useful to have as a backup charger for use on the race track, in a tow truck, in an SUV, trailer or anywhere you need power. This affordable 7-40 KW DCFC is perfect to install for charging electric vehicle at maximum speed as well as many EV cars. take on road trips through rural areas with RV or industrial areas being the main power sources for EV travelers. This unit will greatly speed up you or your customers charging.
FEATURES:
♦ Features Small size and light weight.
♦ 4.3-inch touchscreen display.
♦ Scan or swipe the card to charge.
♦ Support remote charging monitoring and control of mobile phones.
♦ IP54 protection level.
♦ Fashion and high-end modeling.
PRODUCT PARAMETER:
| Model | 7KW / MPSC7750S | |
| AC Input | Input Rating | 220Vac±10% |
| AC Input Connection | L2 + L3 +PE(NEMA,JPS) | |
| Max. Input Current | 32A | |
| Frequency | 50 /60 Hz | |
| Power Factor | >0.99@full load | |
| Efficiency | 95% | |
| DC Output | Output Voltage Range | 200-750Vdc |
| Max. Output Power | 7KW | |
| Max. Output Current | 20A | |
| User Interface | TFT-LCD Touch Panel | Yes(swiping card without TFT-LCD Touch Panel) |
| Push Buttons | Yes | |
| Interface | Yes | |
| Packing | Dimension(mm) | W:548 × 378× 160 U:1500×520× 250 |
| Weight | Wall:22KG Upright:25KG | |
| Environmental | Operating Temperature | -40~85℃,25℃(TYPE) |
| Humidity | 5%-90% RH, non-condensing | |
| Altitude | 2000m | |
| IP Level | IP54 | |
| Mechanical | Cable Length | 5M (CHAdeMO) , 5M (CCS), 5M(GB/T) Customized acceptable |
| Regulation | Regulation | EN61851-1 |
| Certification | CE , ROHS | |
| Charging protocol | CHAdeMO 2.0 / DIN 70121/ISD1S118/IEC618Sl-23,IEC618Sl-24 | |
SUPPORT CAR:
1. During the transportation process, the charger body package should be firmly sealed and the loading and unloading direction should be identified by a solid wooden packing box. The charger should not be stored upside down. Corresponding tightening measures should be taken during transportation to avoid strong vibration and bumps that damage the outer packaging of the equipment.
2. After the arrival of the goods, it should be checked for damage. If there is any damage to the transportation, it should be
settled with the transportation party and our company. Immediately after unpacking, check that the contents of the box match the packing list.
3. The packaged equipment should be stored in a room with a relative humidity of ≤80% and an ambient air temperature of -10 °C to+40 °C. Storage places should be dry, clean, air circulated, and can prevent the intrusion of various harmful gases. It is strictly forbidden to store in corrosive materials in the same place.4.For customers to choose, DHL, Fedex, TNT, UPS, Air freight, Ocean freight. The package and label can be with customer's requirement.
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the
goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Q9:Are you a factory or trading company?
A: We are a professional manufacturer of new and sustainable energy applications for over 18 years
|
|
