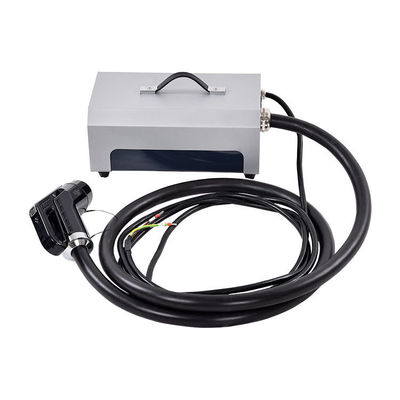

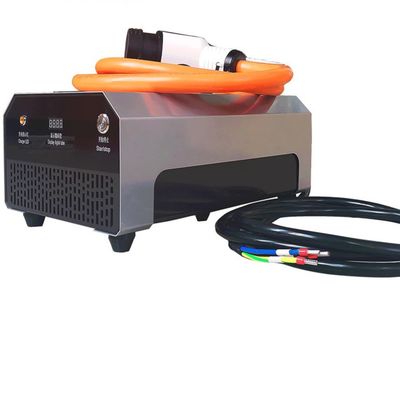

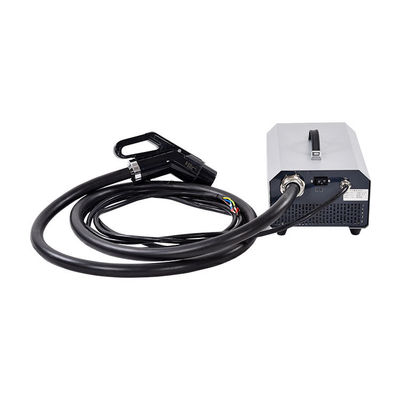

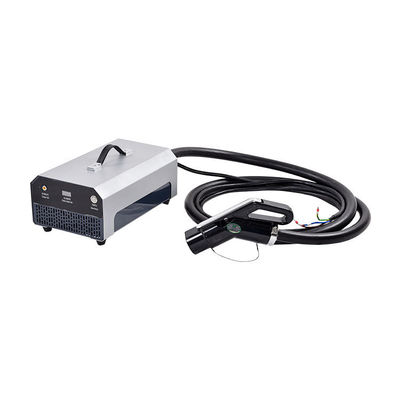

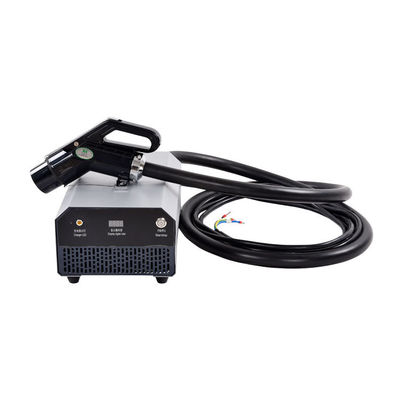

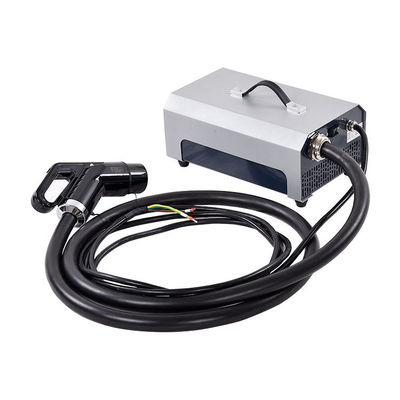

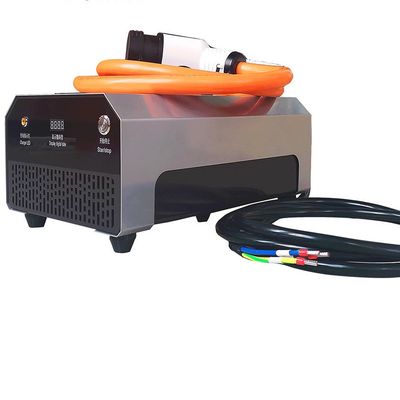

EN 61851 Standard 48V 3.3KW Fast Charge Electric Vehicle Portable EV DC Charger with CHAdeMO and CCS Connectors

Name: EN 61851 Standard 48V 3.3KW Fast Charge Electric Vehicle Portable EV DC Charger with CHAdeMO and CCS Connectors
Brand: Hubei Xinyanmei Supply Chain Management Co., Ltd.
SKU: MC03048
Price: Negotiable USD
Availability: InStock

Brand Name:	MAX POWER
Model Number:	MC03048
Price:	CN¥5,818.16/sets 1-9 sets

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Interface Standard:

GB/T, Rema,

Output Current:

50A-200A, 38A

Output Power:

3.3KW-20KW, 3.3KW

Input Voltage:

90V-456V

Product Name:

Portable Quick Charger

Warranty:

12 Months

Input Voltage:

220Vac

Output Voltage:

96-265Vdc

Connectors:

CHAdeMO CCS

Standard:

GB,EN 61851;EN61000;JEVS;UL2202,2231,2231-2 Ect

Usage:

Golf Cart

Keyword:

Customized

Port:

Guangzhou

Packaging Details:

packing box

Supply Ability:

100000 Piece/Pieces per Month

Product Description

Guangzhou Max Power New Energy Technology Co., Ltd. is a high-tech company which has been invested by the fund supported by Jiangxi provincial government. It focuses on the R&D for the core parts such as on/off board charger & DCDC for new energy vehicle(EV, PHEV etc.). The core team members have rich working experience in Valeo with background of overseas education. The products we developed (OFBC,OBC & DCDC) have excellent performance and dominant position in the market.

Product Description

6.6kw 90v Portable Charger

◆ MAX POWER 6.6kw low voltage portable charger is easy to carry, the input voltage is 220V from home plug grid, can charge the EV at any time,anywhere freely.
◆ By center control module, power module, lightning protection unit, Intelligent and friendly interface.
◆ Using high-performance charging modules, wide voltage output range from 200-450Vdc
◆ Standard, touch screen, mobile, wall - mounted, multiple design styles to meet your needs.
◆Small, light, No restraints.
◆High efficiency:≥95%

Production Parameters
Model			6.6KW
AC Input	Input Rating	90-265Vac
		AC Input Connection	L2+L3+PE
		Max. Input Current	32A
		Frequency	50 /60 Hz
		Power Factor	>0.99@
		Efficiency	95%
DC Output	Output Voltage Range	200-450Vdc
		Max. Output Power	6.6KW
		Max. Output Current	18A
User Interface	TFT-LCD Touch Panel	Yes
		Push Buttons	No
		Interface	USB
Packing	Dimension	385×230×140mm
Packing		Weight	7KG
Environmental	Operating Temperature	-40~85℃,25℃(TYPE)
		Humidity	5%-90% RH, non-condens,ng
		Altitude	2000m
		IP Level	IP67
Mechanical	Cable Length	5M (CHAdeMO) , 5M (CCS), 5M(GB/T) Customized acceptable
Mechanical		Regulation	EN61851-1
Regulation	Certification	CE , ROHS
Regulation		Charging protocol	CHAdeMO 2.0 / DIN 70121/ISD1S118/IEC618Sl-23,IEC618Sl-24

Recommanded For You

Our Advantages

Company Profie

FAQ

Q1.Are you a factory or trading company?
A: We are a professional manufacturer of new and sustainable energy applications for over 18 years.
Q2.What is the warranty?
A: 12 months. In this period, we will supply technical support and replace the new parts by free,customers are in charge of
delivery.
Q3. What is your terms of packing?
A: Generally, we pack our goods in brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q4. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. What is your terms of trade?
A: EXW, FOB, CFR, CIF, DAP,DDU,DDP
Q6. How about your delivery time?
A: Generally, it will take 3 to 7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q8. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q9. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q10.What’s the difference between Movable Charger and Wallbox Charger?
A: In addition to the obvious appearance difference, the main protection level is different: wallbox charger protection level is IP54, available outdoors;And the Movable Charger protection level is IP43, rainy days and other weather can not be used outdoors.
