| Brand Name: | MAXPOWER |
| Model Number: | UC30750 |
| Price: | CN¥23,563.55/sets |
|
MODEL
|
30KW
|
40KW
|
60KW
|
|||
|
INPUT
|
|
|
|
|||
|
Nominal Input Voltage
|
380 VAC ± 15%
|
|
|
|||
|
Acceptable Input Voltage Range
|
3-phase, 3ph + N + PE
|
|
|
|||
|
Working Voltage Range
|
50 - 60 Hz
|
|
|
|||
|
Maximum Input Current
|
5-200A
|
5-200A
|
5-200A
|
|||
|
Frequency Range
|
≦ 5%
|
|
|
|||
|
Input Power Factor
|
> 0.99 @nominal voltage (100% load)
|
|
|
|||
|
OUTPUT
|
|
|
|
|||
|
Output Current Range (based on 2-output)
|
5-200A
|
5-200A
|
5-200A
|
|||
|
Output Voltage Range
|
200~750VDC (600~750VDC in constant power mode)
|
|
|
|||
|
Power Module
|
15kW x 2 pcs
|
20kW x 2 pcs
|
30kW x2 pcs
|
|||
|
Efficiency
|
> 94%
|
|
|
|||
|
Module Output Current Unbalancce
|
< 5%
|
|
|
|||
|
Module Output Voltage Ripple
|
< 0.5
|
|
|
|||
|
Module Output Voltage Precision
|
< 0.5%
|
|
|
|||
|
MModule Output Current Precision
|
< 1%
|
|
|
|||
|
Connector Single Mode (max.)
|
yes
|
yes
|
yes
|
|||
|
Connector Double Mode (max.)
|
no
|
yes
|
yes
|
|||
|
Power Distribution
|
Single plug mode / Average output mode
|
|
|
|||
|
PROTECTION
|
|
|
|
|||
|
Charger Safety Protection
|
Over/Under voltage, overload, output power limit function, short circuit, anti-access, earth leakage, lightning and overheat
protection |
|
|
|||
|
Interface Safety Portection
|
Circuit discharge function, insulation monitoring device (IMD) and battery reverse parity protection
|
|
|
|||
|
USER INTERFACE
|
|
|
|
|||
|
Status Indiators
|
Power on, charging and fault
|
|
|
|||
|
Communication Protocol
|
OCPP 1.6
|
|
|
|||
|
Connection Communication Mode
|
In accordance with DIN 70121 and ISO 15118 standard
|
|
|
|||
|
Connection Standard
|
CCS2 (IEC61851-23) and CHAdeMO 1.0
|
|
|
|||
|
ENVIRONMENT
|
|
|
|
|||
|
Operating Temperature
|
-25°C to 50°C
|
|
|
|||
|
Humidity
|
0 - 95% (non-condensing)
|
|
|
|||
|
Altitude
|
< 2000m
|
|
|
|||
|
Noise Level
|
<65dB
|
|
|
|||
|
PHYSICAL
|
|
|
|
|||
|

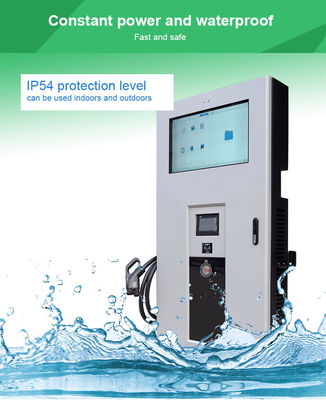

IP Protection
|
IP54
|
|
|
|||
|
Cable Length
|
5m
|
|
|
|||
|
Dimension, D x W x H (mm)
|
1900mm*1000mm*250excluding plug and cable
|
|
|
|||
|
Net Weight (kgs)
|
2330
|
340
|
360
|
|||
|
|
