| Brand Name: | MAXPOWER |
| Model Number: | FC060750-EU |
| Price: | CN¥25,454.45/pieces >=1 pieces |
|
MODEL
|
60KW
|
120KW
|
180KW
|
|||
|
INPUT
|
|
|
|
|||
|
Nominal Input Voltage
|
380 VAC ± 15%
|
|
|
|||
|
Acceptable Input Voltage Range
|
3-phase, 3ph + N + PE
|
|
|
|||
|
Working Voltage Range
|
50 - 60 Hz
|
|
|
|||
|
Maximum Input Current
|
100A
|
260A
|
300A
|
|||
|
Frequency Range
|
≦ 5%
|
|
|
|||
|
Input Power Factor
|
> 0.99 @nominal voltage (100% load)
|
|
|
|||
|
OUTPUT
|
|
|
|
|||
|
Output Current Range (based on 2-output)
|
2 ~ 200A
|
2 ~ 250 A
|
2 ~ 250 A
|
|||
|
Output Voltage Range
|
200~750VDC (600~750VDC in constant power mode)
|
|
|
|||
|
Power Module
|
30kW x 2 pcs
|
30kW x 4 pcs
|
30kW x6 pcs
|
|||
|
Efficiency
|
> 94%
|
|
|
|||
|
Module Output Current Unbalancce
|
< 5%
|
|
|
|||
|
Module Output Voltage Ripple
|
< 0.5
|
|
|
|||
|
Module Output Voltage Precision
|
< 0.5%
|
|
|
|||
|
MModule Output Current Precision
|
< 1%
|
|
|
|||
|

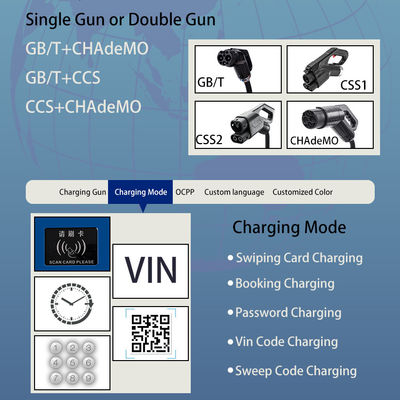

Connector Single Mode (max.)
|
CCS2 (60kW) ChAdeMO (50kW)
|
CCS2 (120kW)
ChAdeMO (50kW)
|
CCS2 (180kW) ChAdeMO (50kW)
|
|||
|
Connector Double Mode (max.)
|
CCS2 (30kW) ChAdeMO (50kW)
|
CCS2 (60kW)
ChAdeMO (50kW)
|
CCS2 (90kW)
ChAdeMO (50kW)
|
|||
|
Power Distribution
|
Single plug mode / Average output mode
|
|
|
|||
|
PROTECTION
|
|
|
|
|||
|
Charger Safety Protection
|
Over/Under voltage, overload, output power limit function, short circuit, anti-access, earth leakage, lightning and overheat
protection |
|
|
|||
|
Interface Safety Portection
|
Circuit discharge function, insulation monitoring device (IMD) and battery reverse parity protection
|
|
|
|||
|

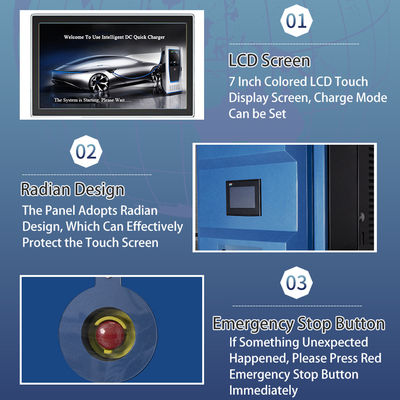

USER INTERFACE
|
|
|
|
|||
|
Status Indiators
|
Power on, charging and fault
|
|
|
|||
|
Communication Protocol
|
OCPP 1.6
|
|
|
|||
|
Connection Communication Mode
|
In accordance with DIN 70121 and ISO 15118 standard
|
|
|
|||
|
Connection Standard
|
CCS2 (IEC61851-23) and CHAdeMO 1.0
|
|
|
|||
|
ENVIRONMENT
|
|
|
|
|||
|
Operating Temperature
|
-25°C to 50°C
|
|
|
|||
|
Humidity
|
0 - 95% (non-condensing)
|
|
|
|||
|
Altitude
|
< 2000m
|
|
|
|||
|
Noise Level
|
<65dB
|
|
|
|||
|
PHYSICAL
|
|
|
|
|||
|
IP Protection
|
IP54
|
|
|
|||
|
Cable Length
|
5m
|
|
|
|||
|
Dimension, D x W x H (mm)
|
750 x 530 x 1685, excluding plug and cable
|
|
|
|||
|
Net Weight (kgs)
|
275
|
310
|
328
|
|||
|
|
