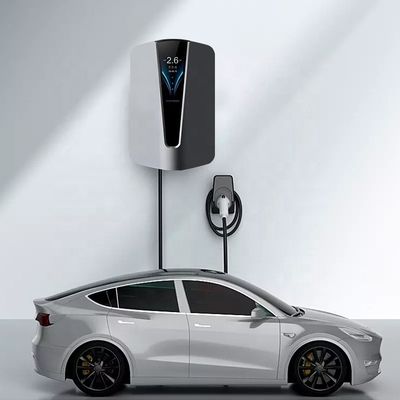

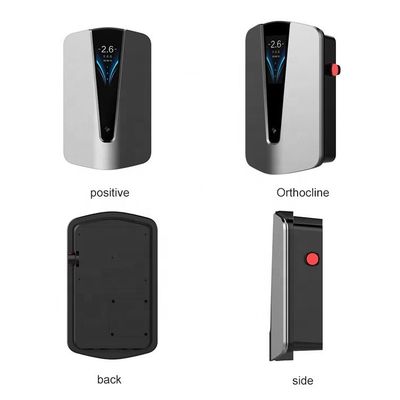

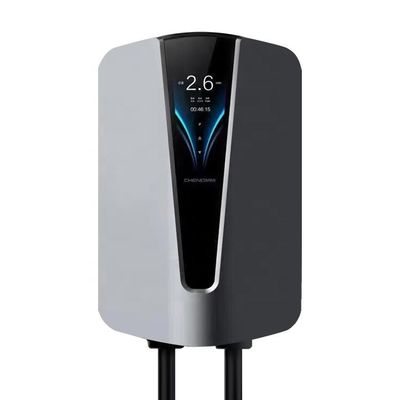

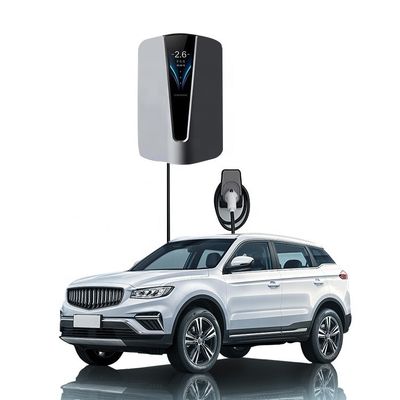

American European Standard 1Phase 16A/32A/48A Wall-mounted AC EV Charging Pile with 7KW/11KW/22KW Rated Power

Brand Name:	Wanhe Qingtian
Model Number:	Q8
MOQ:	2 pieces
Price:	CN¥1,598.83-2,034.88/pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Hubei, China

Interface Standard:

Tesla

Output Current:

Output Power:

7kW

Input Voltage:

AC230V

Product Name:

AC EV Charger

Model:

Power Supply:

L+N+PE/L1+L2+L3+N+PE

Rated Voltage:

AC 230V/AC 400V

Rated Current:

16A/32A/48A

Frequency:

50/60Hz

Output Voltage:

AC 240V/AC 400V

Output Current:

16A/32A/48A

Rated Power:

7KW/11KW/22KW

Outer Case:

PC9010

Packaging Details:

1set/carton

Product Description

Specification

	Model	7KW	11KW	22KW	Optional
Input	Power Supply	L+N+PE	L1+L2+L3+N+PE	L1+L2+L3+N+PE
		Rated voltage	AC 230V	AC 400V	AC 400V
		Rated current	32A	16A	32A
		Frequency	50/60Hz	50/60Hz	50/60Hz
Output	Output voltage	AC 240V	AC 400V	AC 400V
		Output current	32A	16A	32A
		Rated power	7KW	11KW	22KW
User interface	Cable length	5M				Customized
		Outer case	PC9010
		LED indicator	Green/blue/red (blue - standby; green - charger connected to the vehicle, flashing - charging; red - abnormal)
		Emergency stop	include
Start-up mode	Plug-and-Play	Yes
Start-up mode		RFID Reader	—				Y	N
Screen	4.3-inch	—				Y	N
Network	4G	—				Y	N
		RJ45	—				Y	N
		Bluetooth/WiFi	—				Y	N
Security	RCD	A+DC6mA
		Ingress Protection	IP65
		Surge Protection	IK10
		Electrical Protection	Overvoltage protection, undervoltage protection, grounding protection, lightning protection, leakage protection, flame retardant protection, overcurrent protection, intelligent temperature control protection, relay adhesion protection, input shutdown protection, vehicle specification level protection vehicle and protective personnel
	Warranty	15 months
	Cooling mode	Natural cooling
Environment	Installation	Wall-mount/Pole-mount
		Working Temperature	-30℃~+50℃
		Storage temperature	-40℃~+80℃
		Operating humidity	5%~95% no moisture condensation or frost
		Working Height	<2000m
Specifications	Product Dimension	291810.5cm
		Package Dimension	594518.5cm
		Net Weight	4.2KG
		Gross Weight	5.2KG
Packing list	Charging pile	1Pcs
		Instructions	1Pcs
		Cable	1Pcs
		Plug holder	1Pcs
		Screw (for installation)	1Pcs
		Outer packaging	Carton
Other	Efficiency	≥98
		Insulation resistance	≥10MΩ
		Power of control module	≤7W
		Terminal	include

Product Description

1. APP Control

*Setting Current: you can set the current when the power grid is overload.
* Controlling Stop & Start: Control the Stop & Start by your phone, you can control it in anywhere.
* Making an Appointment of Charging: If you want the electric vehicle to be charged in night, it is a good choice that you make an
appointment of the charging by APP, it is very convenient.
* Record: you can check the charging record by APP in any time.
* The best Choice for home market

2.Load balance management

* Restricting the total charging load protects the local grid
* Sharing the charging load cuts costs for the required electricity connection
* Choose an open type CT (current transformer) as the current sensor, It is no physical wiring between the devices, which has the
advantage of open and close installation, convenient and fast wiring, no extra infrastructure or installation costs.

3.Customizable

Our factory can customize the style and function of the charging pile according to the different needs of customers, and accept
OEM and ODM orders
