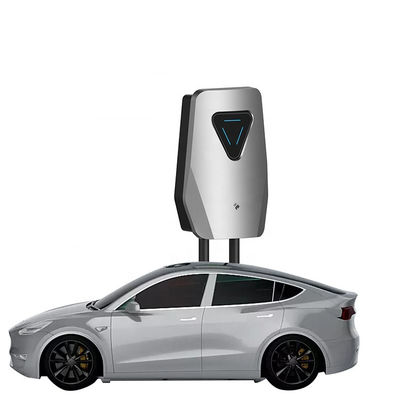

12KW Ev Charging Station Wall Box Ev Charger Pile with 230V/400V Input Voltage and 32A Rated Current

Brand Name:	Wanhe ChinTiyan
Model Number:	Q5
MOQ:	2 pieces
Price:	CN¥1,453.48/pieces 2-99 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Hubei, China

Interface Standard:

Type 1/type 2/GBT

Output Current:

Output Power:

7kW

Input Voltage:

230V/400V

Product Name:

7KW Single Phase Charging Pile

Model:

Color:

Customized Color

Warranty:

2Years

Rated Current:

32A

IP Degree:

Charging Station IP 65

MOQ:

10 PCS

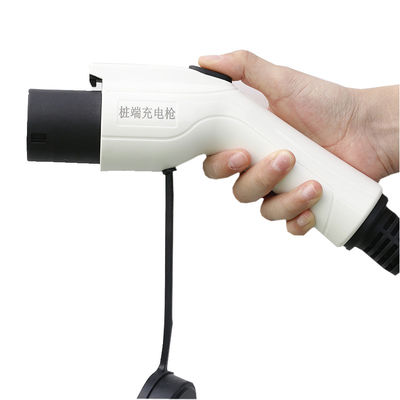

Charging Connector:

Type 2 Cable

Outer Packaging:

Carton

Efficiency:

≥98

Port:

Shenzhen

Packaging Details:

carton

Supply Ability:

2000 Set/Sets per Week

Product Description

Charging equipment for electric cars ev charging 7kw single phase Charging pile

Specification

Product name			Charging equipment for electric cars ev charging 7kw single phase Charging pile
	Model	32A		Optional
Input	Power Supply	L+N+PE
		Rated voltage	240V
		Rated current	32A
		Frequency	50/60HZ
Output	Output voltage	240V
		Output current	32A
		Rated power	7KW
User interface	Cable length	7.62M		Customized
		Outer case	PC9010
		LED indicator	Green/blue/red (blue - standby; green - charger connected to the vehicle, flashing - charging; red - abnormal)
		Emergency stop	include
Start-up mode	Plug-and-Play	Yes
Start-up mode		RFID Reader	—		Y	N
Screen	4.3-inch	—		Y	N
Network	4G	—		Y	N
		RJ45	—		Y	N
		Bluetooth/WiFi	—		Y	N
Security	RCD	A+ccid20
		Ingress Protection	IP65
		Surge Protection	IK10
		Electrical Protection	Overvoltage protection, undervoltage protection, grounding protection, lightning protection, leakage protection, flame retardant protection, overcurrent protection, intelligent temperature control protection, relay adhesion protection, input shutdown protection, vehicle specification level protection vehicle and protective personnel
	Warranty	15 months
	Cooling mode	Natural cooling
Environment	Installation	Wall-mount/Pole-mount

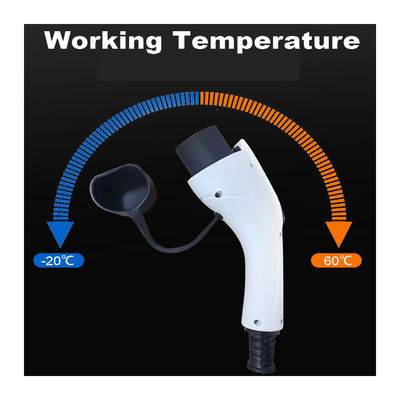

		Working Temperature	-30℃~+50℃
		Storage temperature	-40℃~+80℃
		Operating humidity	5%~95% no moisture condensation or frost
		Working Height	<2000m

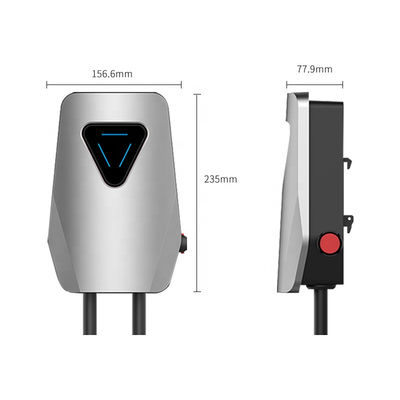

Specifications	Product Dimension	23167.5cm
		Package Dimension	4623.525cm
		Net Weight	2.5KG
		Gross Weight	3.5KG
Packing list	Charging pile	1Pcs
		Instructions	1Pcs

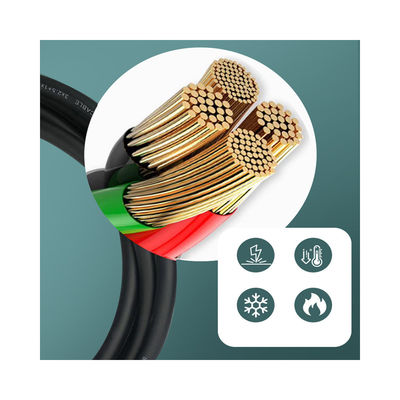

		Cable	1Pcs

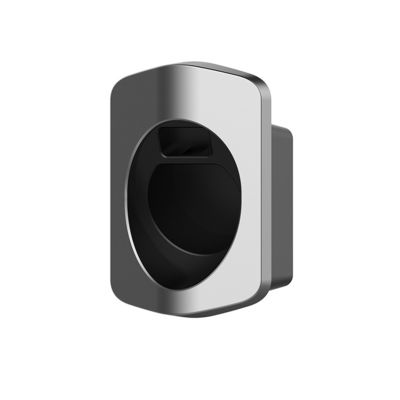

		Plug holder	1Pcs
		Screw (for installation)	1Pcs
		Outer packaging	Carton
Other	Efficiency	≥98
		Insulation resistance	≥10MΩ
		Power of control module	≤7W
		Terminal	include

Product Description

1. APP Control

*Setting Current: you can set the current when the power grid is overload.
* Controlling Stop & Start: Control the Stop & Start by your phone, you can control it in anywhere.
* Making an Appointment of Charging: If you want the electric vehicle to be charged in night, it is a good choice that you make an
appointment of the charging by APP, it is very convenient.
* Record: you can check the charging record by APP in any time.
* The best Choice for home market

2.Load balance management

* Restricting the total charging load protects the local grid
* Sharing the charging load cuts costs for the required electricity connection
* Choose an open type CT (current transformer) as the current sensor, It is no physical wiring between the devices, which has the
advantage of open and close installation, convenient and fast wiring, no extra infrastructure or installation costs.

3.Customizable

Our factory can customize the style and function of the charging pile according to the different needs of customers, and accept
OEM and ODM orders

Our Factory

Packing and Delivery

Exhibition

Company Profile

Wuhan Wanhe Qingtian New Energy Co., Ltd. is a high-tech new energy enterprise specializing in production, design, R&D and sales, focusing on intelligent equipment for the new energy vehicle charging pile industry. The company currently employs more than 200 people, constantly absorbing senior technical personnel, and has 30 engineers and senior engineers who have been engaged in design and manufacturing for many years. With independent intellectual property rights and core technology, the products are exported to foreign countries wordwide.

FAQ

Q1: What is your main products?

A1: Our main products are EV chargers, EV dischargers, EV charging pile hanger(support), protection box for EV charger, extension cable for EV charger and other electric vehicle charger accessories.

Q2. What type of EV chargers do you have?
A2: Home use, commercial use are available, GB/T, type 1, type 2 are available.

Q3. What is your warranty?
A3. 5 years warranty.

Q4. Are you a factory or a trader?
A4. We are manufacturer(factory). OEM, ODM service is available.

Q5. What is your payment terms?
A5. TT, L/C, Trade Assurance, Paypal, Western Union etc.
