| Brand Name: | Uni |
| Model Number: | Q17 |
| MOQ: | 2 pieces |
| Price: | CN¥799.42-3,156.16/pieces |

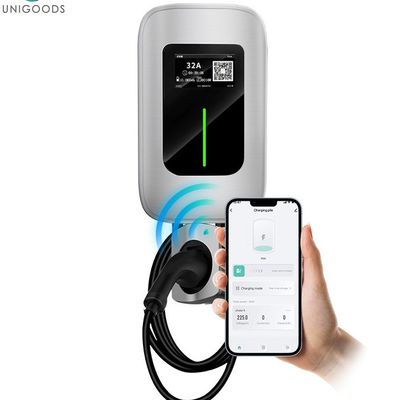

UNI EV Charger
UNI EV Charger is a simple, powerful, heavy-duty, and portable electric vehicle charging station.
UNI EV Charger is quickly charge for your car.
UNI EV Charger is a more affordable and faster charging.
UNI EV Charger is weather-resistant, and with built-in protection against overvoltage, overcurrent, and short circuits, which is safe and reliable charging every time.
| Standard | GBT/TYPE2 | GBT/TYPE2 | GBT/TYPE2 | TYPE1/TPC | ||||
| Output power | 7kw | 11kw | 21kw | 7kw/11kw | ||||
| Edition |

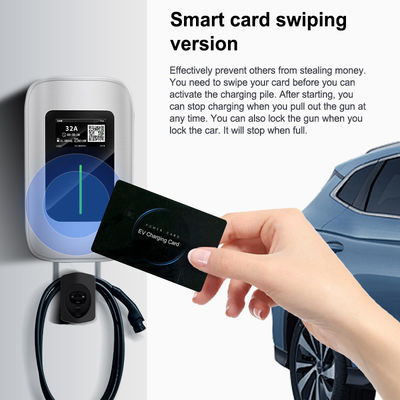

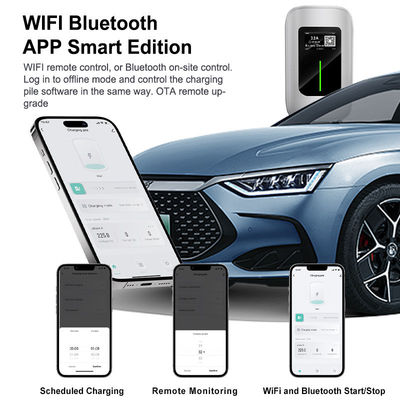

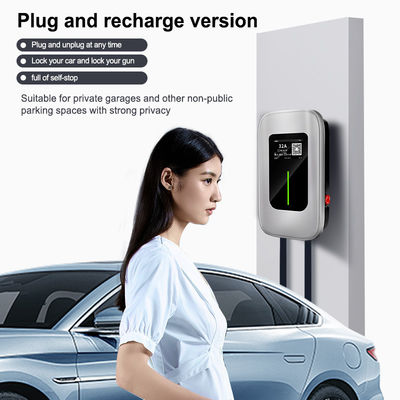

Plug-and-Charge (Default) Card Swipe Activation (Optional) Mobile App Bluetooth/VviFi (Optional) OCPP 1.6 Module (Optional) |
|||||||
| A | B | A | B | A | B | CCID20 | ||
| Gun head cable | 5 meters(Customizable) | 7.62 meters(Customizable) | ||||||
| Input cable | 0.5 meters(Customizable) | |||||||
| Output current | 32A | 16A | 32A | 32A | 48A | |||
| Input voltage | 220V | 380V | 380V | 240V | ||||
| Weight | 3.5kg | |||||||
| Input voltage frequency | 45-60HZ | |||||||
| Operating ambien temperature | -30℃~50℃ | |||||||
| Degree of protection | IP55 | |||||||
| Plug and unplug times | >10000+ | |||||||
| Gun head electronic lock | yes | |||||||
| defects liability period | 1 Year Warranty | |||||||
| DBL | Optional (For Specific European Regions) | |||||||
| size | 361mm*212mm*104mm | |||||||
|
Charging duration (Tesla Model 3) |
Battery Capacity:55 kWh Range:400 km Charge from 20% to 80% Approximate ChargingTime:4.5 hours Charging Speed:Approxi-mately 50 km/h |
Battery Capacity:55 kWh Range:400 km Charge from 20% to 80% Approximate ChargingTime:2.9 hours Charging Speed:Approxi-mately 65 km/h |
Battery Capacity:55 kWh Range:400 km Charge from 20% to 80% Approximate ChargingTime:2 hours Charging Speed:Approxi-mately 75 km/h |
Battery Capacity:55 kWh Range:400 km Charge from 20% to 80% Approximate ChargingTime:4.5 hours Charging Speed:Approxi-mately 50 km/h |
Battery Capacity:55 kWh Range:400 km Charge from 20% to 80% Approximate ChargingTime:2.9 hours Charging Speed:Approxi-mately 65 km/h |
|||
|
|
