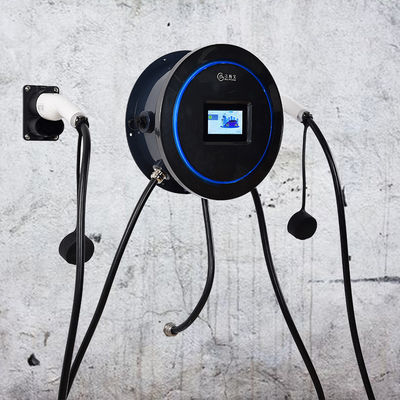

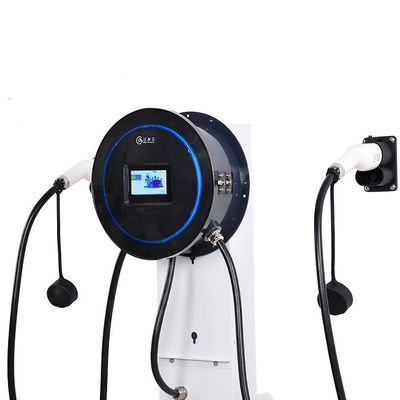

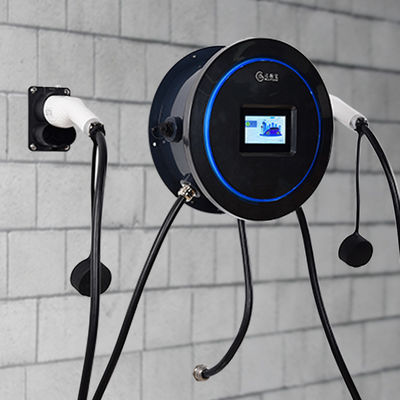

Maximum Altitude 2000m OCPP Wifi Double Gun CCS Type 2 22kw EV Charger Station for Home Charging Performance

Name: Maximum Altitude 2000m OCPP Wifi Double Gun CCS Type 2 22kw EV Charger Station for Home Charging Performance
Brand: Hubei Xinyanmei Supply Chain Management Co., Ltd.
SKU: AB22032
Price: Negotiable USD
Availability: InStock

Brand Name:	Maxpower
Model Number:	AB22032
Price:	CN¥4,567.26/sets 1-9 sets

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Interface Standard:

Output Current:

AC, 32A

Output Power:

Input Voltage:

380V, AC380V(L1+L2+L3+PE)

Output Voltage Range:

380V AC

Chargering Interface Type:

IEC62196-2

Display Screen:

4.3 Inches

Protection Degree:

IP65

Maximum Altitude:

<2000m

Dimension(W/H/D):

350*350*183mm

Mounting Mode:

Wall Hanging/Upright

Evironment Temperature:

-25℃~+50℃

Product Description

Guangzhou Max Power New Energy Technology Co., Ltd. is a high-tech company which has been invested by the fund supported by Jiangxi provincial government. It focuses on the R&D for the core parts such as on/off board charger & DCDC for new energy vehicle(EV, PHEV etc.). The core team members have rich working experience in Valeo with background of overseas education. The products we developed (OFBC,OBC & DCDC) have excellent performance and dominant position in the market.

Product Description

Innovativeness

Acrylic panel, modern design Business use with intelligent App control WiFi Mesh technique, saving cost on wire installation

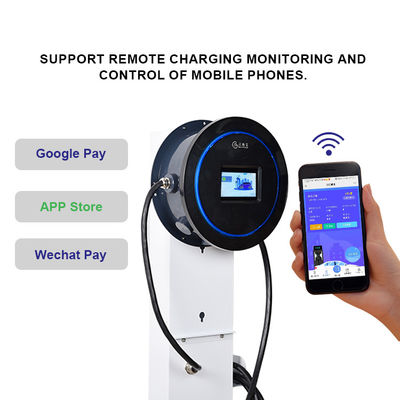

Intelligent Control

Wireless communication (Wi-Fi), Ethernet/4G optional OCPP communication protocol with the backend Intelligent operation by App and cashless payment

Flexible Option

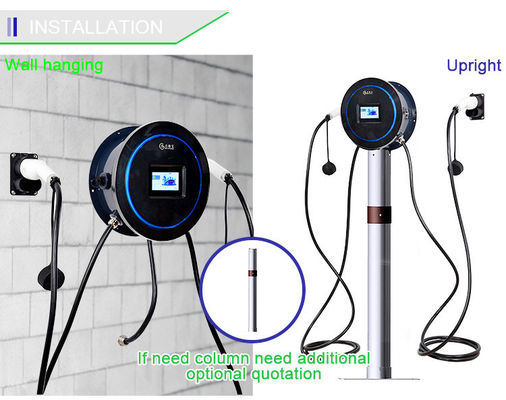

Universal Type 2 socket, optional with Type 1/Type 2 charging cable App operation or RFID authentication or plug and play Wall-mounted or floor-stand installation

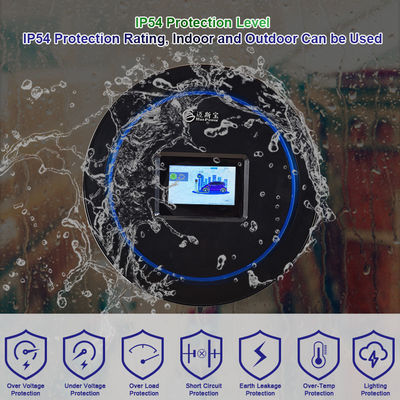

Secure and Safe

RCD Type A and 6mA DC residual current protection MID certified energy meter with accurate measurement

Production Parameters
MODEL	AB11016/AL11016	AB22032/AL22032	AB43064/AL43064
Input voltage	AC380V(L1+L2+L3+PE)
Frequency	50Hz
Output voltage	380V/400V AC 3PHASE
Output power	11KW	22KW	43KW
Output current	16A	32A	64A
Ethernet/WIFI/4G	Yes(Optional)
Connection	IEC 62196-II
RCD	Type B fault current protection
Supported payment	RFID(Optional)
Led indicator light	Yes
Emergency stop button	Optional
Communication interface	RS-232/485 Optional
Background agreement	Support OCPP 1.6 protocol(optional)
Display Screen	4.3 Inches
With charging socket/With charging cable	Optional
Protection degree	IP65
Environment temperature	-30℃ to 65℃
Relative humidity	5%-90% RH, non-condensing
Altitude	2000m
Cooling	Natural air cooling
Stand by power consumption	＜3W
Dimension(W/H/D)mm	350350183 upright:809
Certification	CE
Protection	Overvoltage protection/Under voltage protection/Overload protection/Short circuit protection/Electric leakage protection/Over temperature protection/Lightning protection

SUPPORT CAR:

Recommanded For You

Please feel free and click here for more information.

Company Profie

Please feel free and click here for more information.

Exhibition

Packaging and shipping

Customer Reviews

Please feel free and click here for more information.

FAQ

Q1.Are you a factory or trading company?
A: We are a professional manufacturer of new and sustainable energy applications for over 18 years.
Q2.What is the warranty?
A: 12 months. In this period, we will supply technical support and replace the new parts by free,customers are in charge of
delivery.
Q3. What is your terms of packing?
A: Generally, we pack our goods in brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q4. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. What is your terms of trade?
A: EXW, FOB, CFR, CIF, DAP,DDU,DDP
Q6. How about your delivery time?
A: Generally, it will take 3 to 7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q8. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q9. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q10.What’s the difference between Movable Charger and Wallbox Charger?
A: In addition to the obvious appearance difference, the main protection level is different: wallbox charger protection level is IP54, available outdoors;And the Movable Charger protection level is IP43, rainy days and other weather can not be used outdoors.
