120kW DC Floor-Mounted Energy Electric Vehicle Charging Station with 4G OCPP WIFI and 200-750VDC Output Voltage Range

Name: 120kW DC Floor-Mounted Energy Electric Vehicle Charging Station with 4G OCPP WIFI and 200-750VDC Output Voltage Range
Brand: Hubei Xinyanmei Supply Chain Management Co., Ltd.
SKU: FC120750HDG
Price: Negotiable USD
Availability: InStock

Brand Name:	MAXPOWER
Model Number:	FC120750HDG
Price:	CN¥39,999.85/sets 1-4 sets

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Interface Standard:

GBT

Output Current:

250A

Output Power:

120

Input Voltage:

380v

Nominal Input Voltage:

380 VAC ± 15%

Maximum Input Current:

200A

Acceptable Input Voltage Range:

3-phase, 3ph + N + PE

Working Voltage Range:

50 - 60 Hz

Output Voltage Range:

200-750VDC

Power Module:

30KW X 4 Pcs

Connectors:

GBT

Usage:

Charge EV Car

IP Protection:

IP54

Cable Length:

Packaging Details:

Packing box

Supply Ability:

30000 Set/Sets per Month

Product Description

Products Description

EV CHARGER 60KW-150KW

*Smart DC charger is a configurable-multiple-outlet high-power charger which is suitable for CBD or public areas.

*The product consists of human-machine interaction part, power module, internal control system, communication module and charging cable assembly.

Features

*Modular design including control system, power source system, distributed power system, power factor system *Auto sleep mode after fully charged with low standby power consumption at <5W *Remote firmware upgrade with APP *Remote power module upgrade *Remote diagnostic function simplifis data collection and analysis process *IP54 protection and 1K10 vandal-proof enclosure *7" colored touch LCD display for easy configuration.

Compliance Standard

*IEC 61851 Electric vehicle conductive charging system *IEC 62196 plugs, socket-outlets, vehicle connectors and vehicle inlets-conductive carging of electric vehicle *DIN 70121 Electromobility-Digital communication between a d.c. EV charging station and an electric vehicle for control of d.c. charging in the combined charging system *ISO 15118 Road vehicles-Vehicle-to-Grid Communication Interface

Product Paramenters

MODEL	60KW	120KW	150KW
INPUT
Nominal Input Voltage	380 VAC ± 15%
Acceptable Input Voltage Range	3-phase, 3ph + N + PE
Working Voltage Range	50 - 60 Hz
Maximum Input Current	118 A	225A	278A
Frequency Range	≦ 5%
Input Power Factor	> 0.99 @nominal voltage (100% load)
OUTPUT
Output Current Range (based on 2-output)	2 ~ 100 A	2 ~ 200 A	2 ~ 250 A
Output Voltage Range	200~750VDC (600~750VDC in constant power mode)
Power Module	30kW x 2 pcs	30kW x 4 pcs	30kW x5 pcs
Efficiency	> 94%
Module Output Current Unbalancce	< 5%
Module Output Voltage Ripple	< 0.5
Module Output Voltage Precision	< 0.5%
MModule Output Current Precision	< 1%
Connector Single Mode (max.)	CCS2 (60kW) ChAdeMO (50kW)	CCS2 (120kW) ChAdeMO (50kW)	CCS2 (150kW) ChAdeMO (50kW)
Connector Double Mode (max.)	CCS2 (30kW) ChAdeMO (50kW)	CCS2 (60kW) ChAdeMO (50kW)	CCS2 (90kW) ChAdeMO (50kW)
Power Distribution	Single plug mode / Average output mode
PROTECTION
Charger Safety Protection	Over/Under voltage, overload, output power limit function, short circuit, anti-access, earth leakage, lightning and overheat protection
Interface Safety Portection	Circuit discharge function, insulation monitoring device (IMD) and battery reverse parity protection
USER INTERFACE
Status Indiators	Power on, charging and fault
Communication Protocol	OCPP 1.6
Connection Communication Mode	In accordance with DIN 70121 and ISO 15118 standard
Connection Standard	CCS2 (IEC61851-23) and CHAdeMO 1.0
ENVIRONMENT
Operating Temperature	-25°C to 50°C
Humidity	0 - 95% (non-condensing)
Altitude	< 2000m
Noise Level	<65dB
PHYSICAL
IP Protection	IP54
Cable Length	5m
Dimension, D x W x H (mm)	750 x 530 x 1685, excluding plug and cable
Net Weight (kgs)	275	310	328

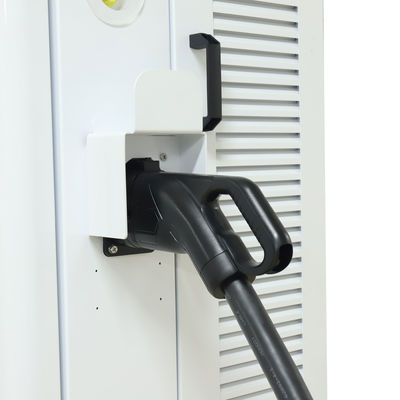

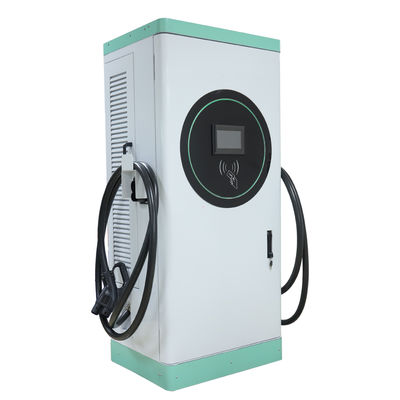

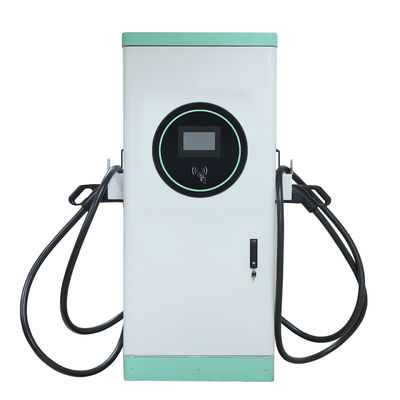

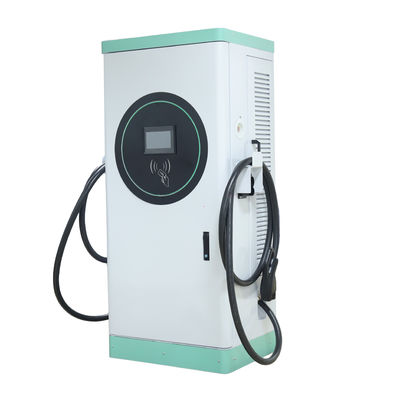

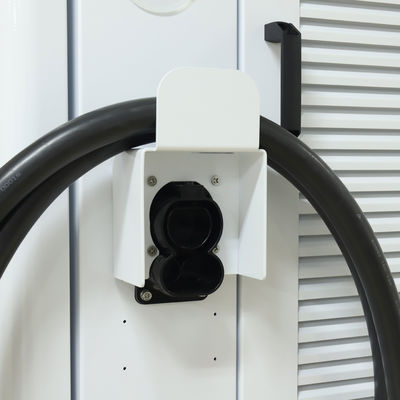

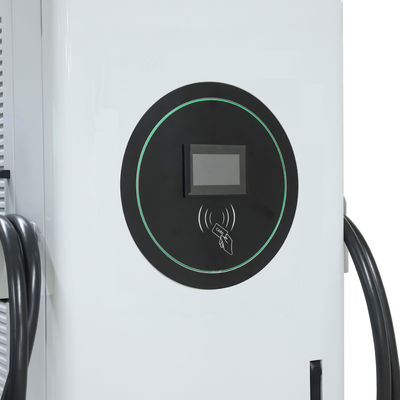

Details Images

Recommanded For You

Please feel free and click here for more information.

Company Profie

Please feel free and click here for more information.

Exhibition

Packaging and shipping

Customer Reviews

Please feel free and click here for more information.

FAQ

Q1.Are you a factory or trading company?
A: We are a professional manufacturer of new and sustainable energy applications for over 18 years.
Q2.What is the warranty?
A: 12 months. In this period, we will supply technical support and replace the new parts by free,customers are in charge of
delivery.
Q3. What is your terms of packing?
A: Generally, we pack our goods in brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q4. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. What is your terms of trade?
A: EXW, FOB, CFR, CIF, DAP,DDU,DDP
Q6. How about your delivery time?
A: Generally, it will take 3 to 7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q8. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q9. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q10.What’s the difference between Movable Charger and Wallbox Charger?
A: In addition to the obvious appearance difference, the main protection level is different: wallbox charger protection level is IP54, available outdoors;And the Movable Charger protection level is IP43, rainy days and other weather can not be used outdoors.
